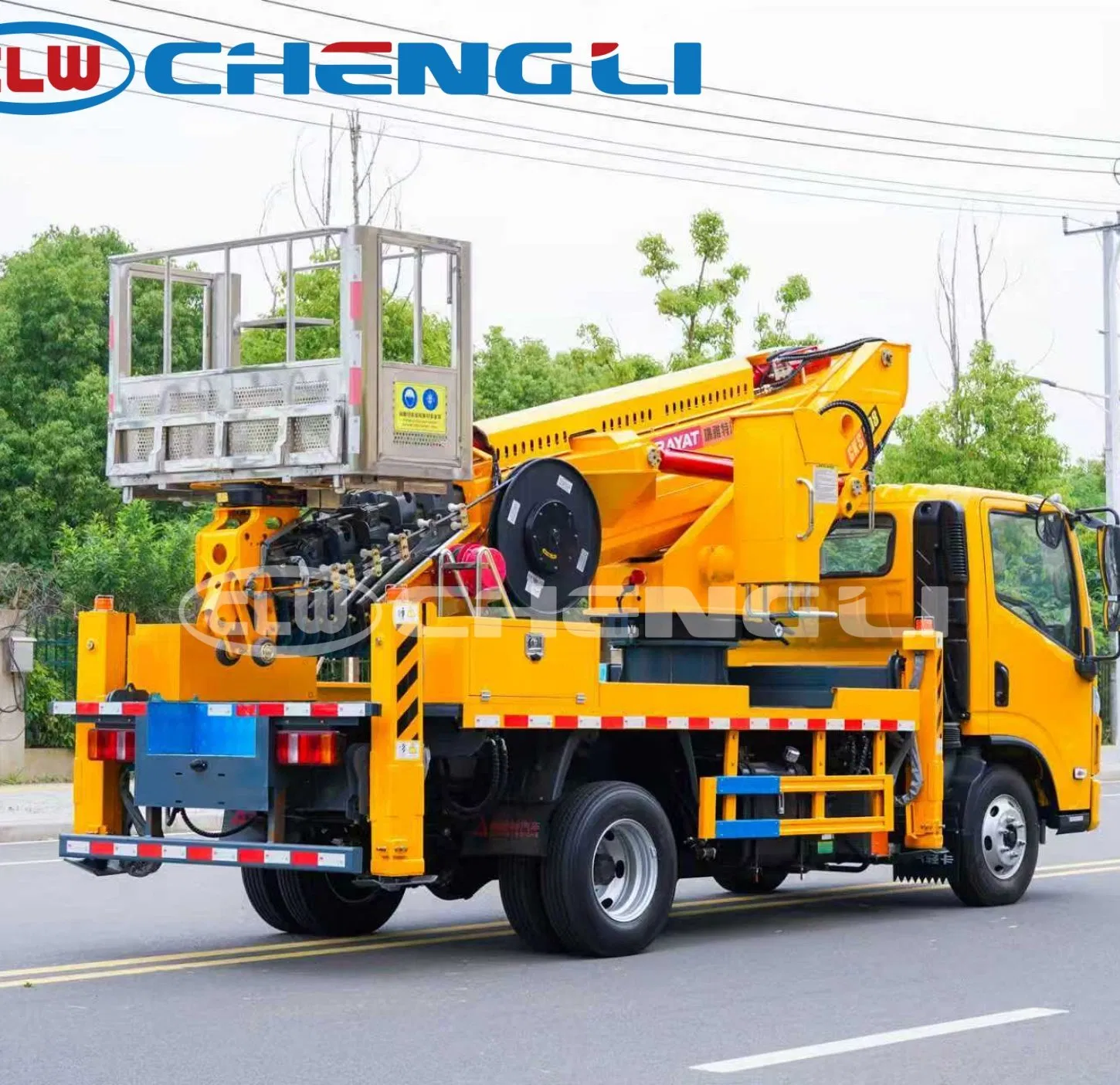

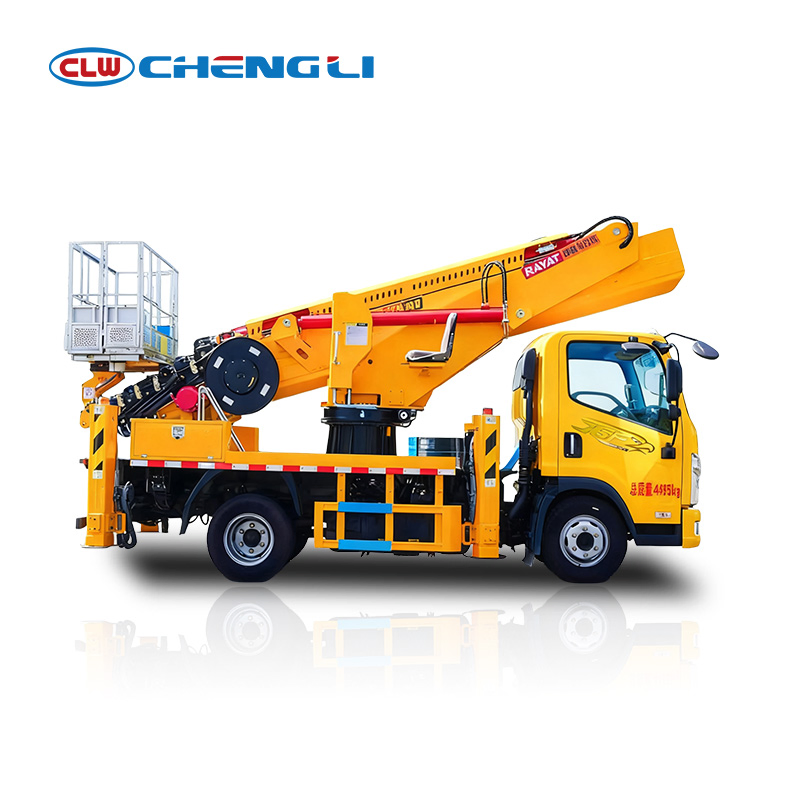

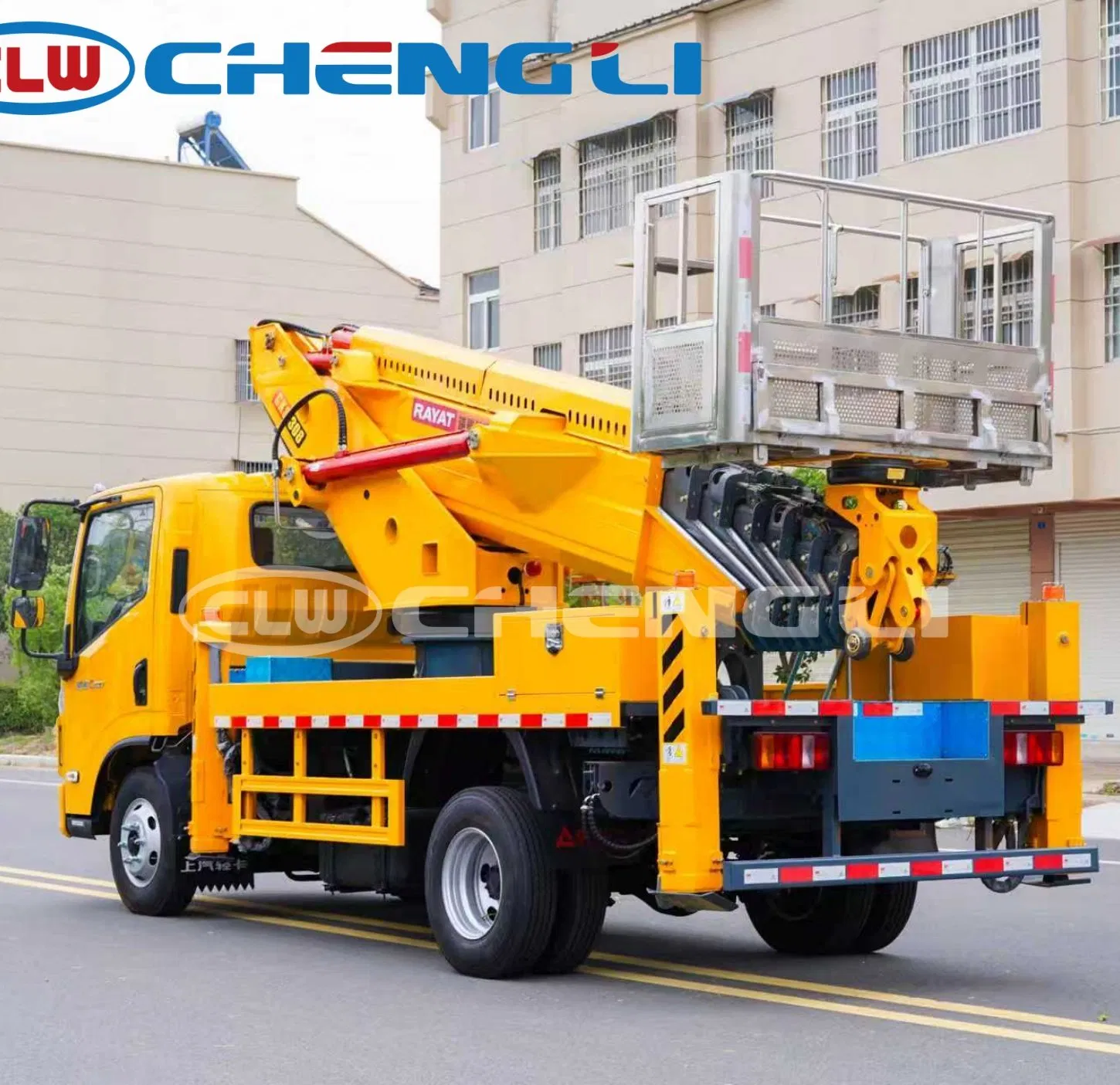

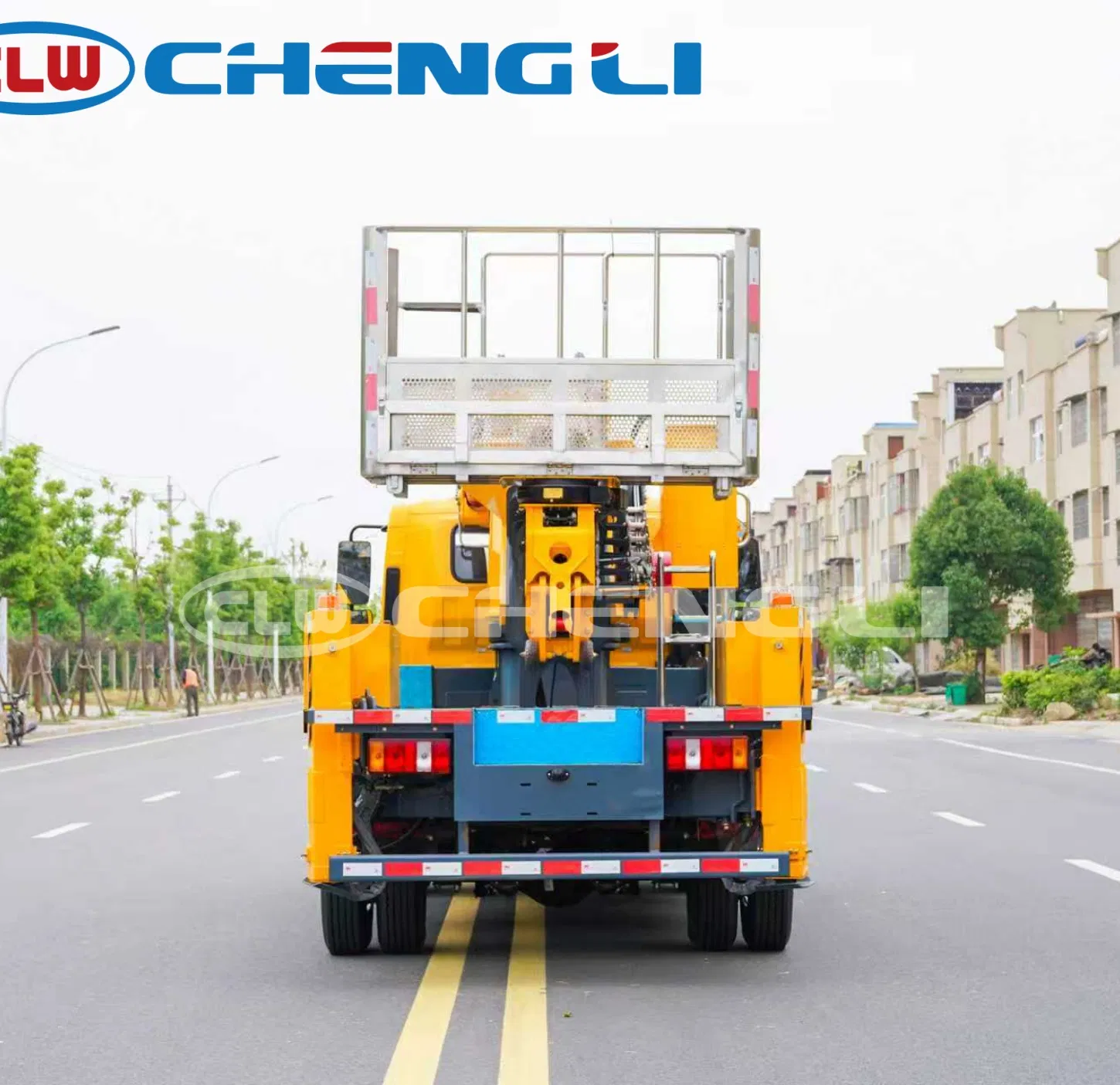

FAW Aerial Platform Bucket Truck
A factory-built aerial platform truck for streetlight, power line and signage work in West and East Africa. Elevated platform on a FAW chassis; boom and basket configured to the daily jobs before production.
Specifications
| Manufacturer | CLW Group |
|---|---|
| Vehicle Model | CLW5110JGKD6234 |
| Chassis Brand | FAW |
| Drive Layout | 4x2 |
| Fuel Type | Diesel |
| Emission Standard | Euro 2/ 3/ 4/ 5/ 6 |
| Engine Model | WP25Q151E62 |
| Transmission | Manual |
| Wheelbase | 3280 mm |
| Gross Vehicle Weight (kg) | 9100 |
| Curb Weight (kg) | 8200 |
| Overall Length (mm) | 6080 |
| Overall Width (mm) | 2400 |
| Overall Height (mm) | 3550 |
Parameters depend on the configuration; final values are fixed in the specification annexed to the contract.
This FAW bucket truck raises crews to streetlights, low-voltage lines, signage and building facades for maintenance work., on a s boom.
The boom slews and articulates from the carrier so one position covers several poles, and the platform controls let the crew work hands-free at height. Boom type, insulation requirement and basket configuration are matched to your jobs before production.
As a factory build from CLW Group, the specification is fixed in writing before production; export documents are prepared for the destination market and the unit ships by RO-RO or flat-rack via Lagos, Tema, Mombasa and Dar es Salaam.
Frequently asked questions
What are the maximum working height and platform capacity?
The maximum operating height is 36 meters. The working platform's rated load capacity is 200 kg.
What is the key advantage of having an eight-section straight (telescopic) boom?
The straight telescopic arm design (eight-section sixteen-sided synchronous telescopic arm) offers the advantage of faster, more direct vertical ascent and superior stability for high-reach tasks compared to articulated designs.
What is the chassis and engine configuration?
It is built on the HOWO ZZ1097H3815F191Z chassis and is powered by a Weichai 151ps engine (model WP25Q151E62).
How many control methods are available?
Three control methods are available: fixed operation of the turntable, hydraulic handle operation of the vehicle, and wireless remote control box operation.
Does the boom have a full rotation capability?
Yes, the rotator device allows for 360° continuous rotation.
What key safety systems are in place?
Key safety systems include an upper and lower automatic vehicle interlock device to prevent simultaneous operation, and the "Soft Leg Detection" system, which alerts and limits movement if an outrigger loses stability.
What is the procedure if the engine fails mid-operation?
The vehicle is equipped with an Emergency electric-hydraulic pump to safely return staff from the working platform to the ground if the chassis engine or hydraulic main pump fails.
What type of outrigger system ensures stability?
It uses Front V and Rear V Type Two-Section Outriggers that are individually adjustable and can be synchronously extended to ensure maximum stability.
Data source & status
Specifications on this page are documented from the CLW Group supplier listing and re-checked against the working requirement in the quotation.
