Bucket Trucks

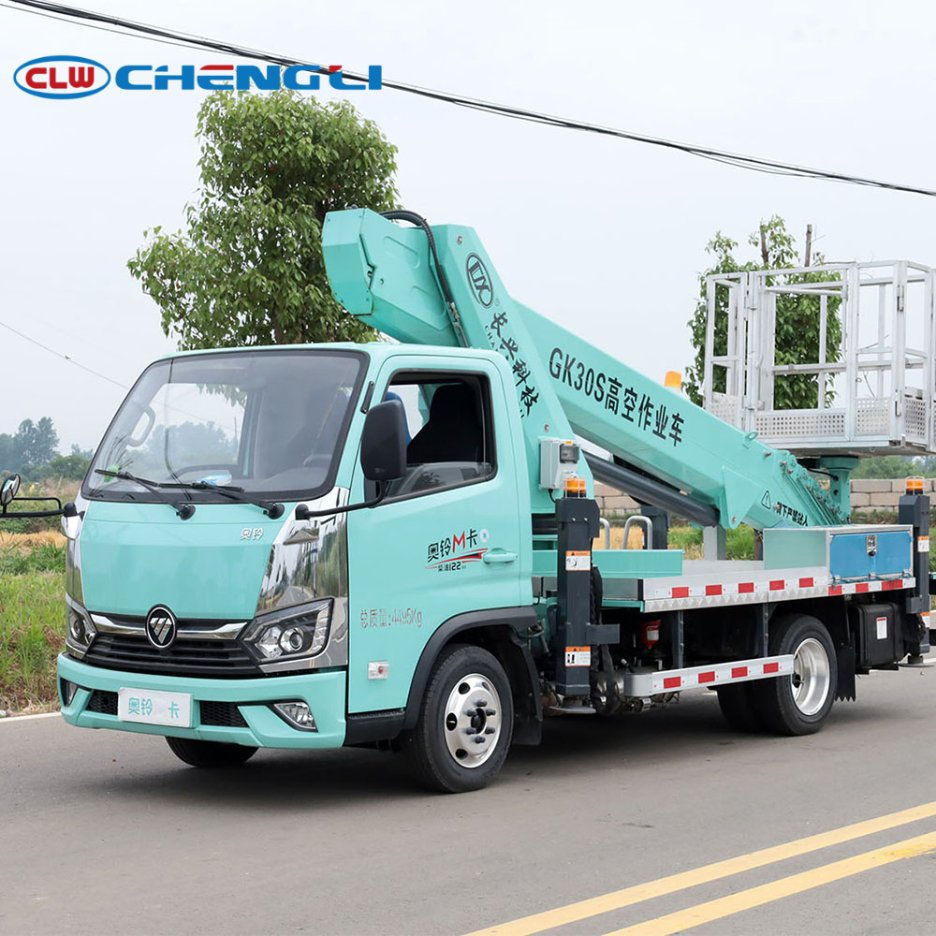

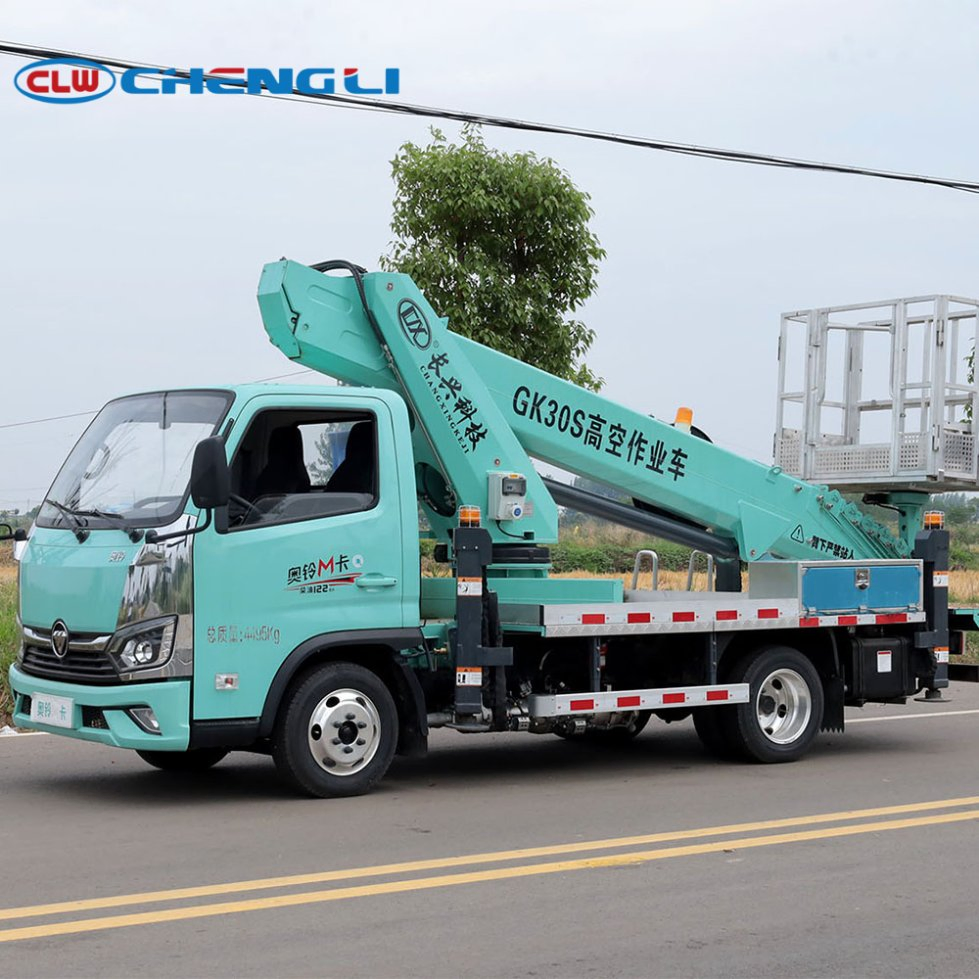

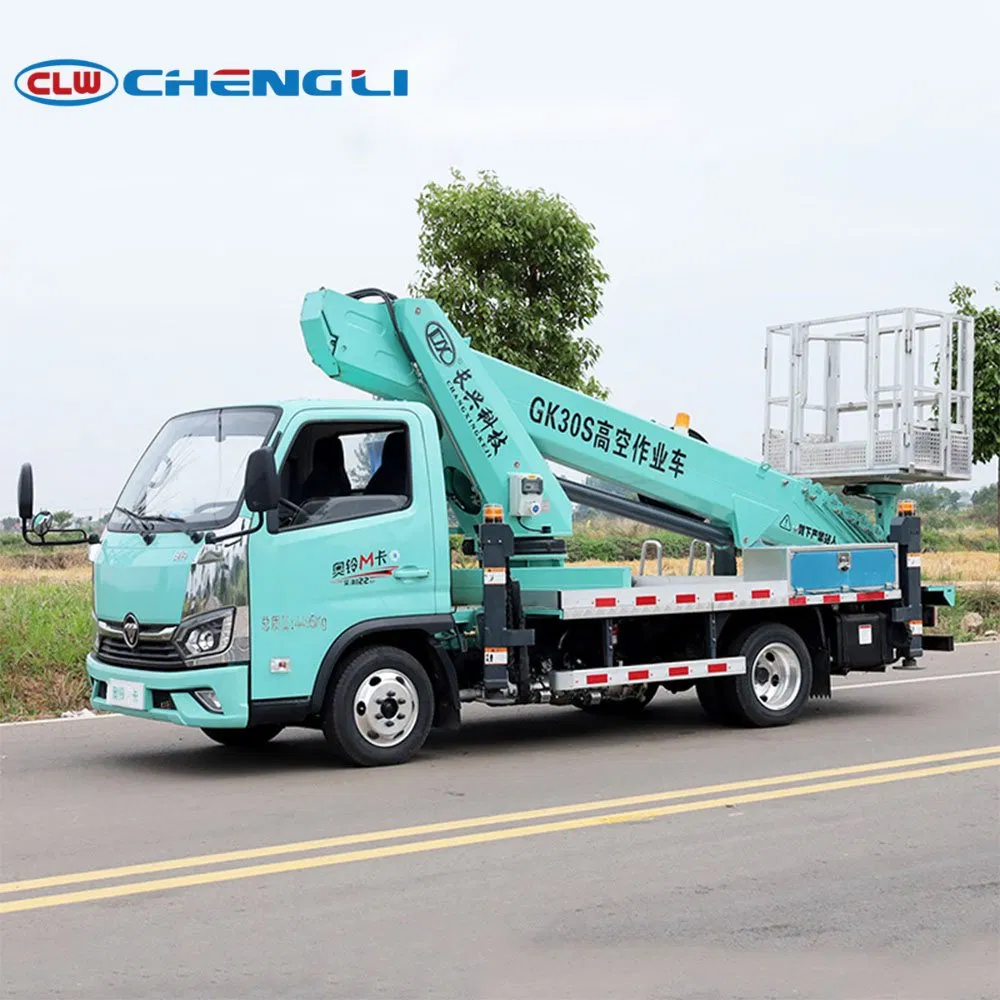

Foton Aerial Platform Bucket Truck
A factory-built aerial platform truck for streetlight, power line and signage work in West and East Africa. Elevated platform on a Foton chassis; boom and basket configured to the daily jobs before production.
Specifications
| Manufacturer | CLW Group |
|---|---|
| Vehicle Model | Aerial work platform vehicle |
| Chassis Brand | Foton |
| Drive Layout | 4x2 |
| Fuel Type | Diesel |
| Emission Standard | Euro 2/ 3/ 4/ 5/ 6 |
| Engine Model | Foton Diesel Engine |
| Transmission | Manual |
| Wheelbase | 3360 mm |
| Gross Vehicle Weight (kg) | 4495 |
| Curb Weight (kg) | 4365 |
| Overall Length (mm) | 5995 |
| Overall Width (mm) | 2050 |
| Overall Height (mm) | 3050 |
Parameters depend on the configuration; final values are fixed in the specification annexed to the contract.
This Foton bucket truck raises crews to streetlights, low-voltage lines, signage and building facades for maintenance work., on a s boom.

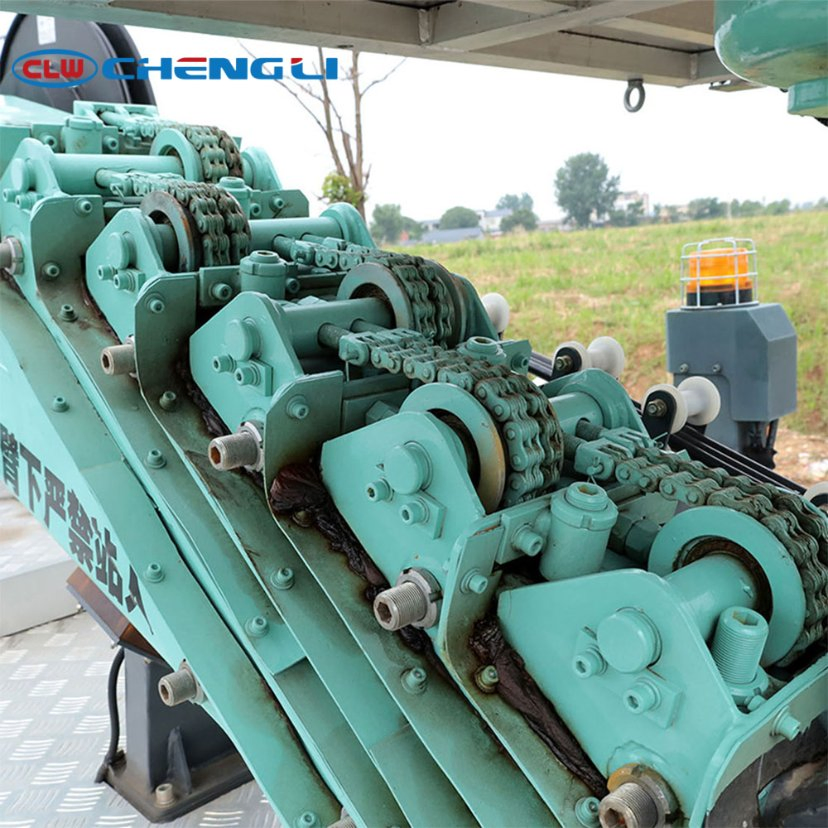

The boom slews and articulates from the carrier so one position covers several poles, and the platform controls let the crew work hands-free at height. Boom type, insulation requirement and basket configuration are matched to your jobs before production.
As a factory build from CLW Group, the specification is fixed in writing before production; export documents are prepared for the destination market and the unit ships by RO-RO or flat-rack via Lagos, Tema, Mombasa and Dar es Salaam.
Frequently asked questions
What is the maximum operating height and platform capacity?
It offers a maximum working height of 17.5 meters with a standard platform capacity of 200 kg.
Can it operate safely on uneven ground?
Yes, its independently adjustable V-type outriggers provide excellent stability on uneven terrain.
How is operator safety ensured in case of a system failure?
The truck features hydraulic lock valves and a manual/electrical dual-control valve for safe lowering even during a power loss.
What is the key feature of the work platform?
The platform uses an external mechanical self-balancing system to remain level at all times during operation.
From where can the truck be operated?
It can be controlled from two positions: the work platform and the turntable base, both with infinitely variable speed control.
Is it suitable for use in low-light conditions?
Yes, the work platform is equipped with integrated LED lights for safe and efficient night operations.
What is a "Passenger Driver's License Vehicle" and why is it important for this 17.5M truck?
The "Passenger Driver's License Vehicle" is a specific classification under Chinese transportation law that designates a light commercial vehicle. For this 17.5M Aerial Work Platform truck, the "Passenger Driver's License Vehicle" designation is critical because it confirms the vehicle meets strict limits: Maximum Gross Vehicle Mass (GVM): Below 4,500 KG. Maximum Vehicle Length: No more than 6 meters. Why it Matters for Buyers: Ease of Driving: In China, it requires only a standard C1 Driver's License (equivalent to a regular passenger car license), eliminating the need for specialized heavy-duty truck licenses for operators. City Access & Maneuverability: These vehicles are typically exempt from or face fewer urban traffic restrictions and curfews than larger trucks, allowing easy access to city centers, narrow streets, and residential areas.
What is a 'Passenger Driver's License Vehicle' and why is it important for this 17.5M truck?
The 'Passenger Driver's License Vehicle' is a specific classification under Chinese transportation law that designates a light commercial vehicle. For this 17.5M Aerial Work Platform truck, the 'Passenger Driver's License Vehicle' designation is critical because it confirms the vehicle meets strict limits: Maximum Gross Vehicle Mass (GVM): Below 4,500 KG. Maximum Vehicle Length: No more than 6 meters. Why it Matters for Buyers: Ease of Driving: In China, it requires only a standard C1 Driver's L
Data source & status
Specifications on this page are documented from the CLW Group supplier listing and re-checked against the working requirement in the quotation.
