Refrigerated Trucks

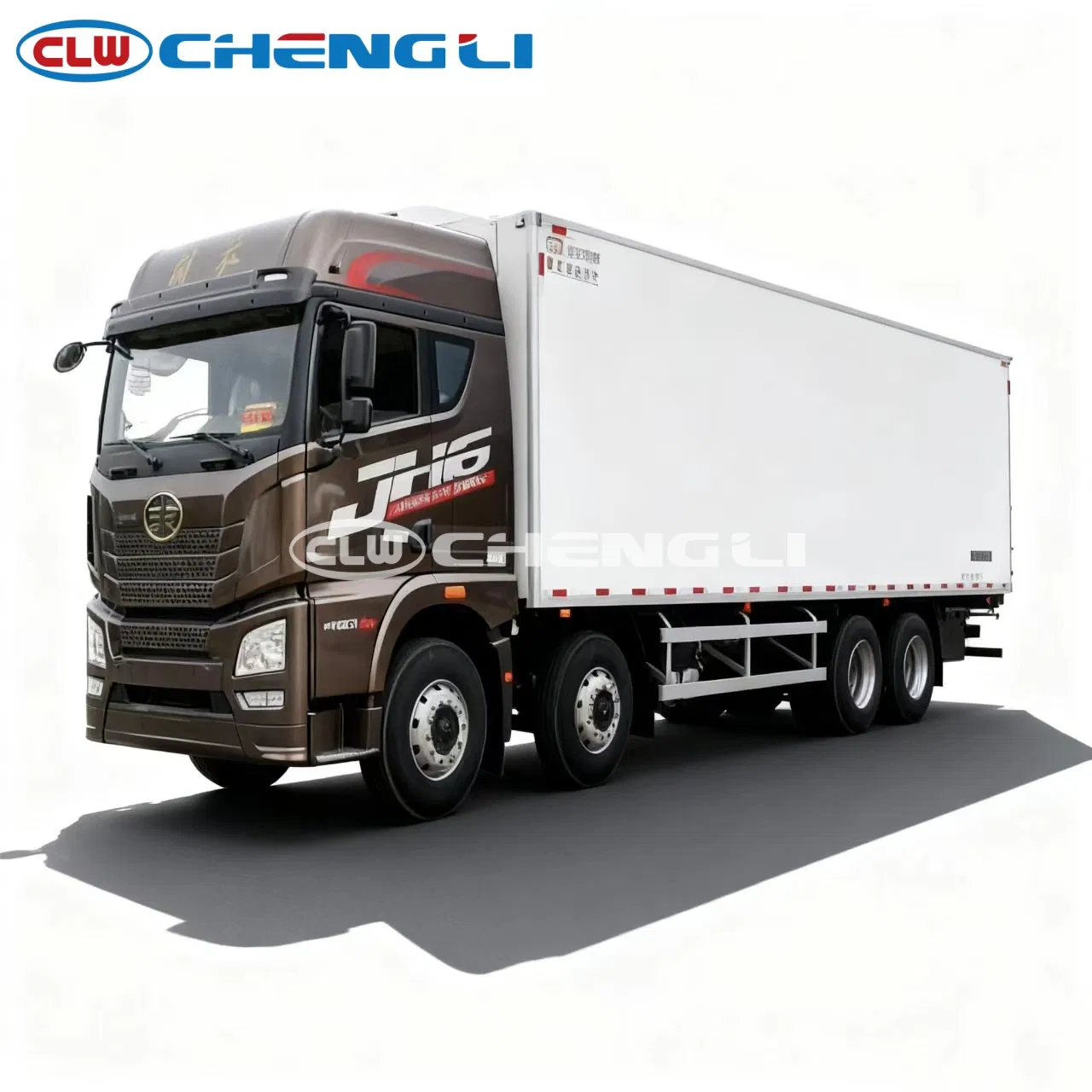

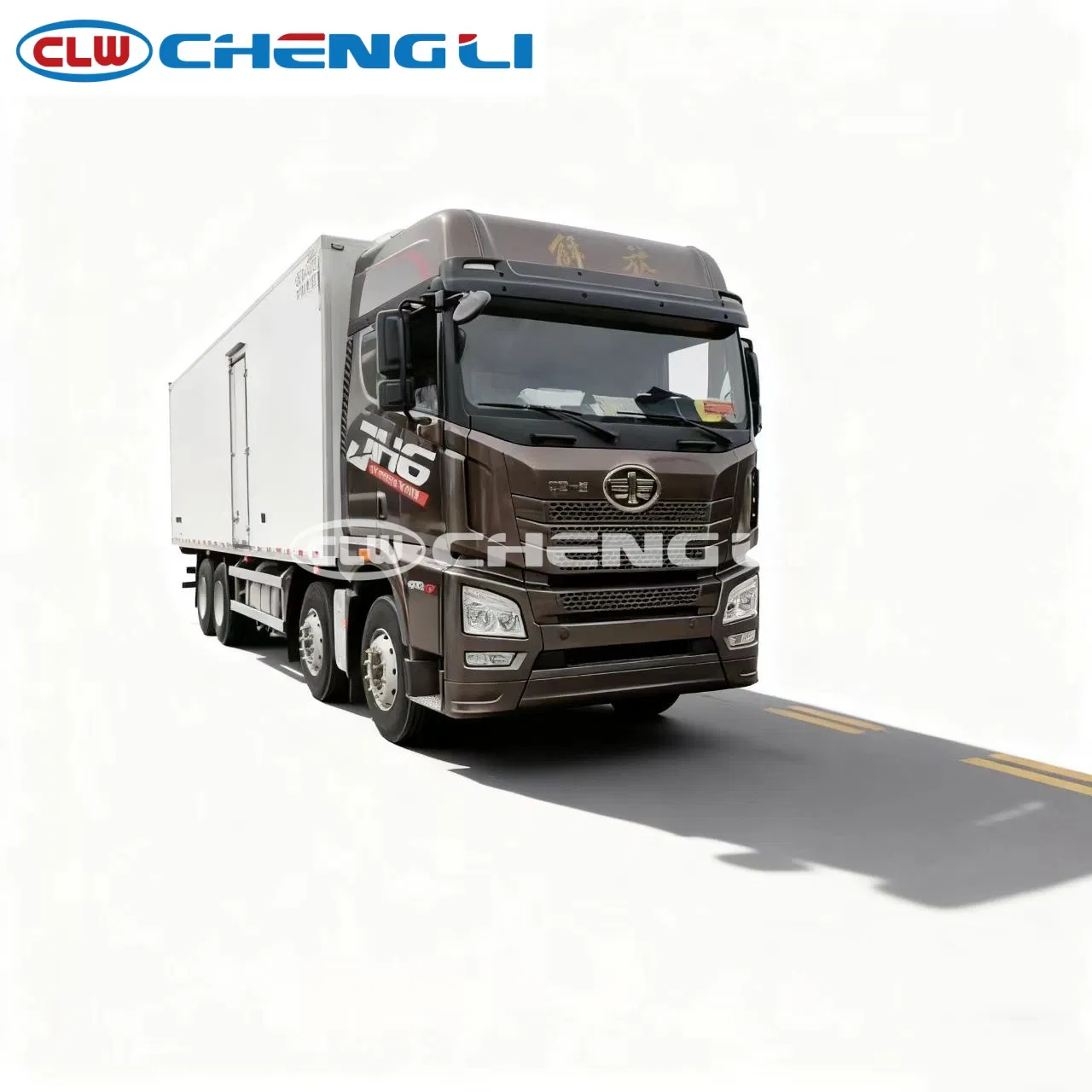

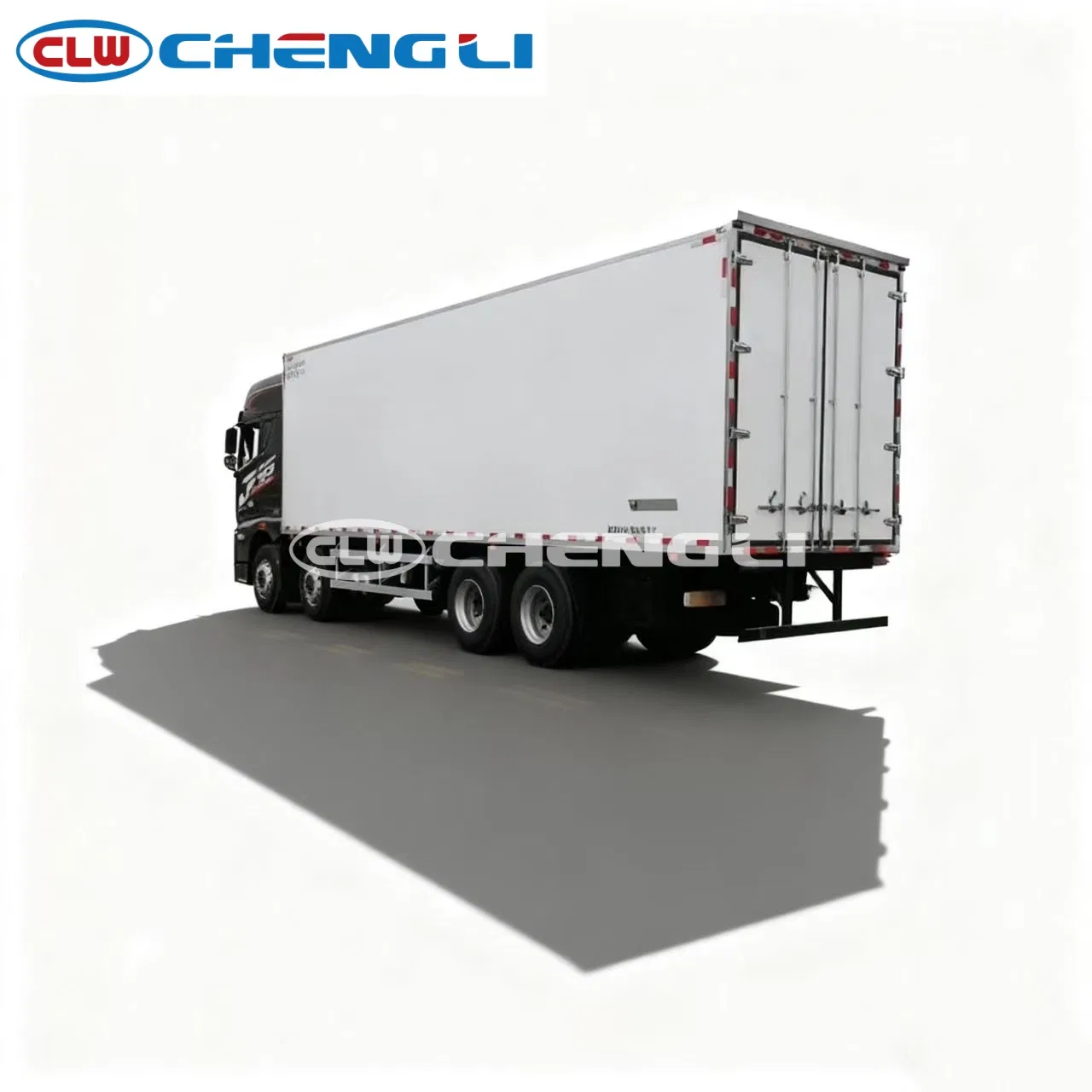

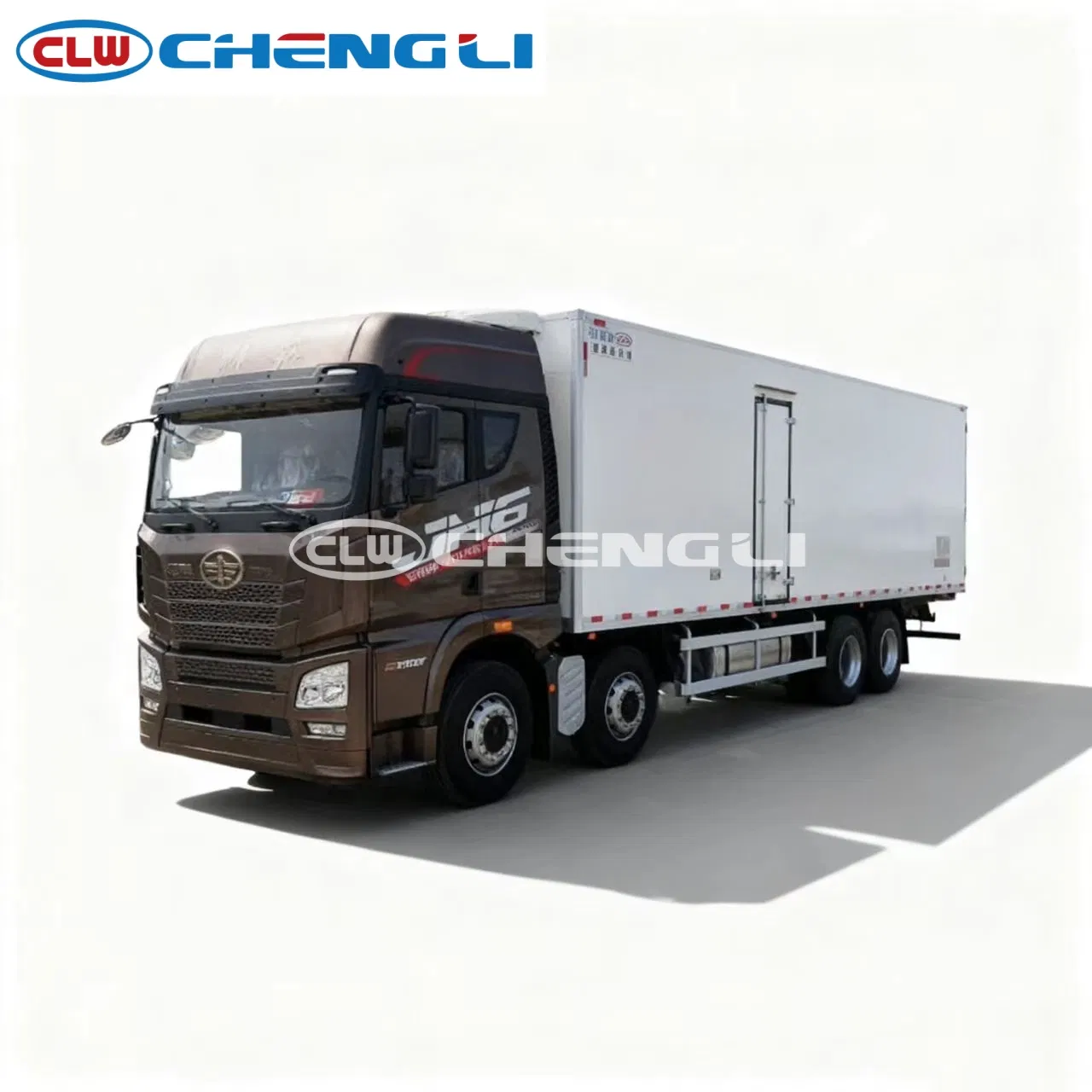

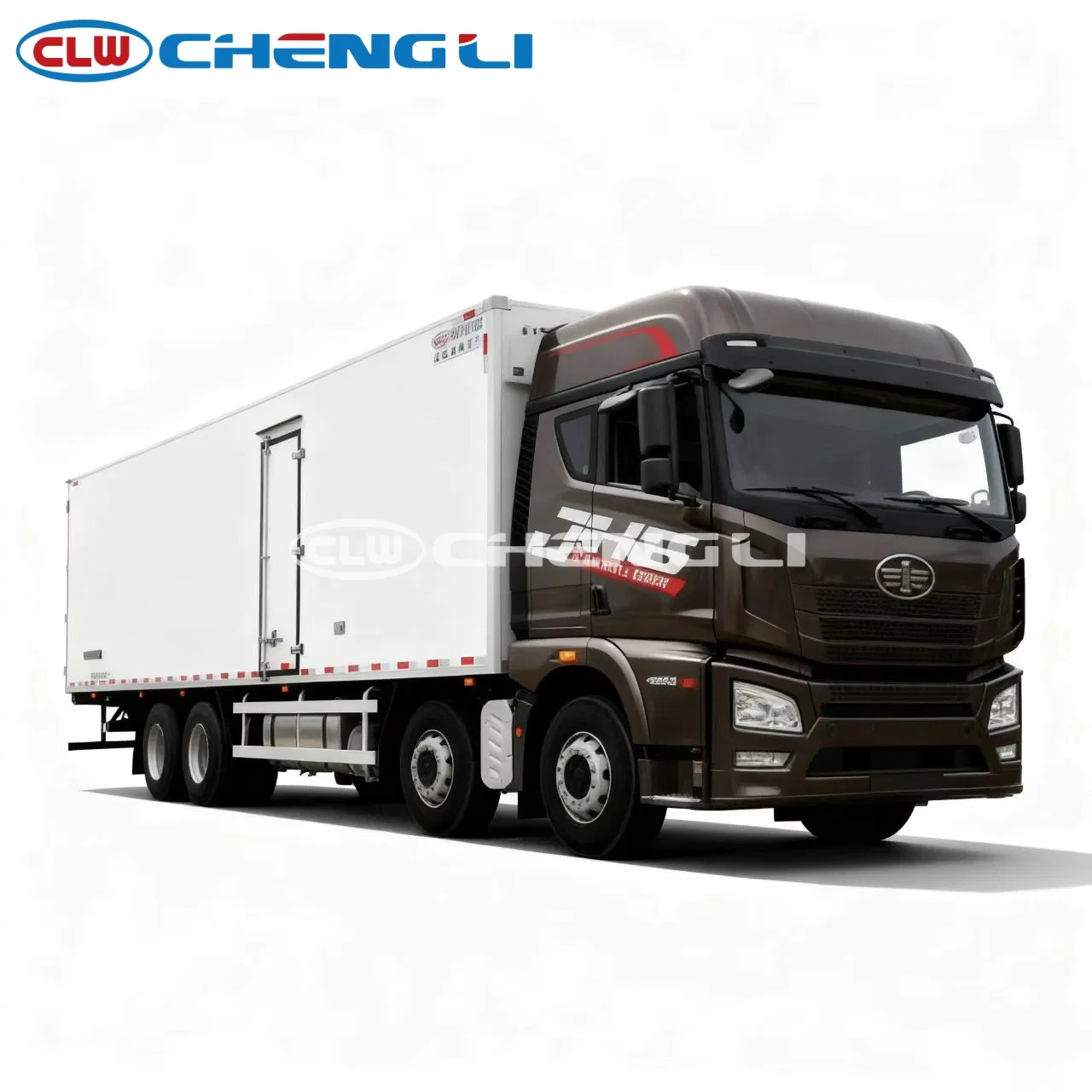

FAW 18 t Refrigerated Truck for Cold-Chain Distribution
A factory-built refrigerated truck for food, beverage and pharmaceutical distribution in West and East Africa. Insulated body with refrigeration unit on a FAW chassis — about 3.9 t per legal run; temperature class confirmed against the load before production.
Core capabilities
| Parameter | What it means on the job | Conditions | Factors that change the result |
|---|---|---|---|
| 18,000 kg GVW − 14,100 kg curb = 3,900 kg | About 3.9 t of goods per legal run on multi-drop routes | Factory curb weight as built; insulation and unit add weight | Body volume, insulation thickness and refrigeration unit |
Specifications
| Manufacturer | CLW Group |
|---|---|
| Vehicle Model | CA5320XLCP25K2L7T4E5A80 |
| Chassis Brand | FAW |
| Drive Layout | 4X2 4X4 6X2 6X4 6X6 8X4 |
| Fuel Type | Diesel |
| Emission Standard | Euro 2/3/4/5/6 |
| Transmission | Automatic |
| Gross Vehicle Weight (kg) | 18000 |
| Curb Weight (kg) | 14100 |
| Overall Length (mm) | 12000 |
| Overall Width (mm) | 2600 |
| Overall Height (mm) | 3980 |
| Maximum Speed (km/h) | 102 |
Parameters depend on the configuration; final values are fixed in the specification annexed to the contract.
This 4X2 4X4 6X2 6X4 6X6 8X4 FAW refrigerated truck keeps chilled and frozen goods at temperature on city and inter-city distribution runs. The insulated body works within a 18,000 kg GVW, carrying about 3.9 t of goods per legal run.
The refrigeration unit holds the set point through door openings on multi-drop routes, and body volume with insulation thickness are matched to the products and dwell time before production — fresh produce, frozen food and pharmaceuticals each need a different temperature class.
As a factory build from CLW Group, the specification is fixed in writing before production; export documents are prepared for the destination market and the unit ships by RO-RO or flat-rack via Lagos, Tema, Mombasa and Dar es Salaam.
Frequently asked questions
What is the warranty period and coverage?
Customers receive a minimum warranty of 12 months or 25,000-50,000 KM, whichever comes first. This includes free replacement parts and components, excluding consumables.
What shipping methods are available?
We offer four main methods: Bulk Carrier, Container Shipping, Flat Rack Container Shipping, and Roll-on/Roll-off (Ro-Ro) Vessel Shipping, plus road or rail for inland countries.
Is technical training provided?
Yes, we provide free operation videos and on-site training at our factory. All local expenses including transportation, hotel, and food are covered until staff are fully trained.
What certifications does the vehicle hold?
The vehicle holds ISO 9001, CCC, TS16949, EPA, EEC, RoHS, CE, and EU ADR certifications.
Can the vehicle be customized?
Yes, we offer full customization, minor customization, and customization based on samples or designs.
What is the expected service life of the truck?
The vehicles are designed to remain functional for 10 to 15 years, with spare parts available via sea, air, and land transport.
Data source & status
Specifications on this page are documented from the CLW Group supplier listing and re-checked against the working requirement in the quotation.
