Refrigerated Trucks

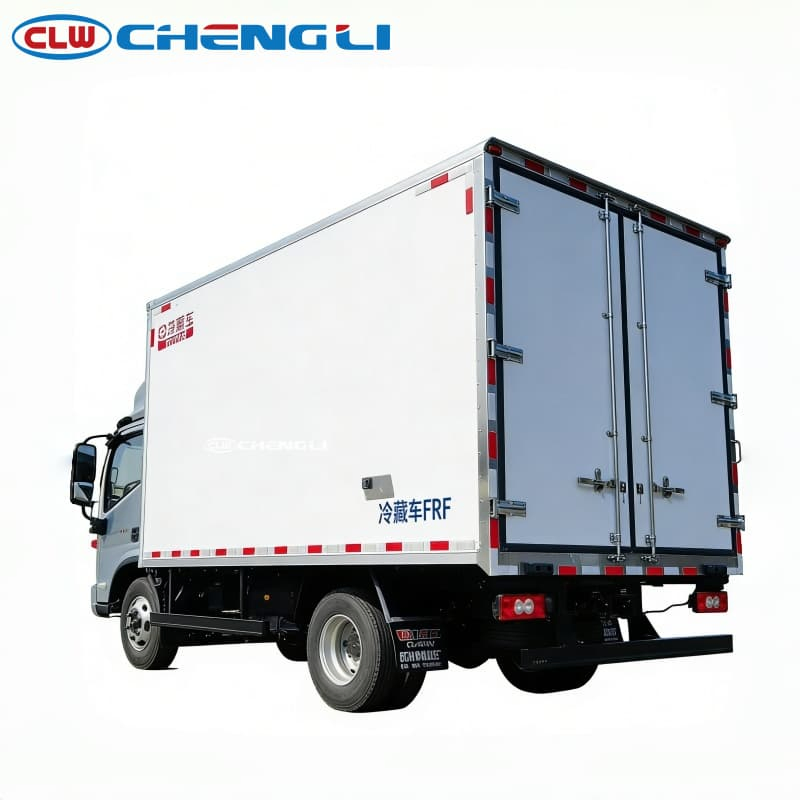

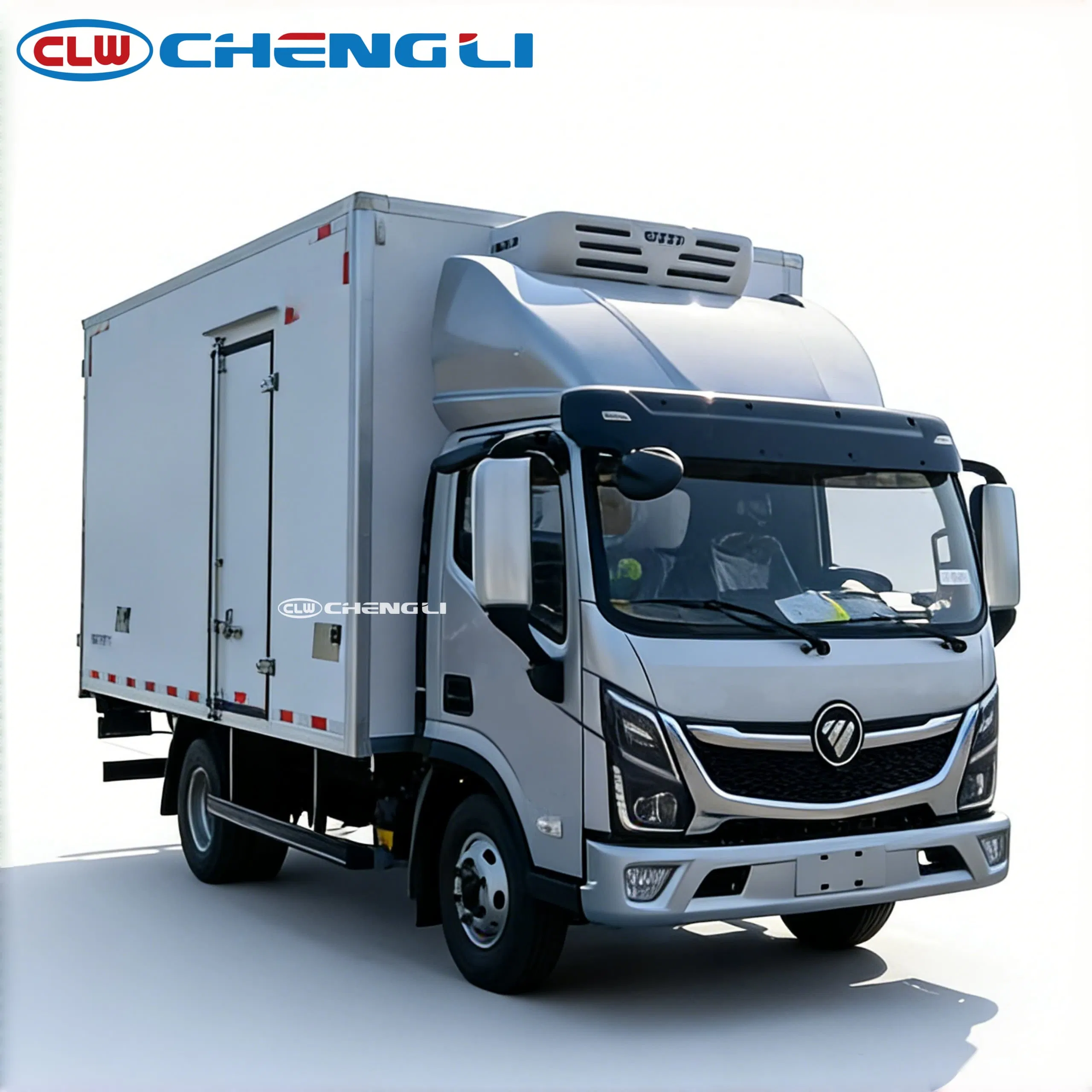

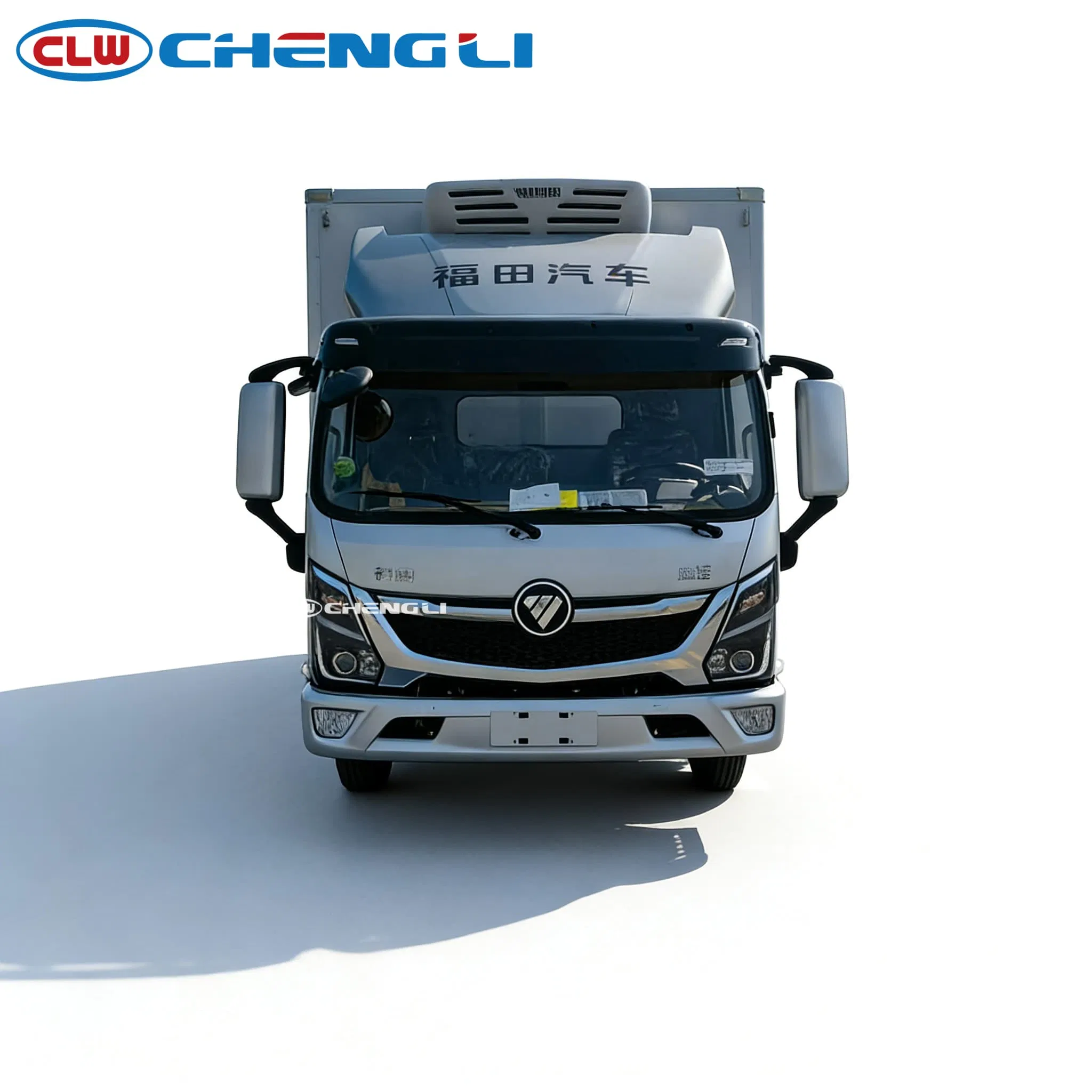

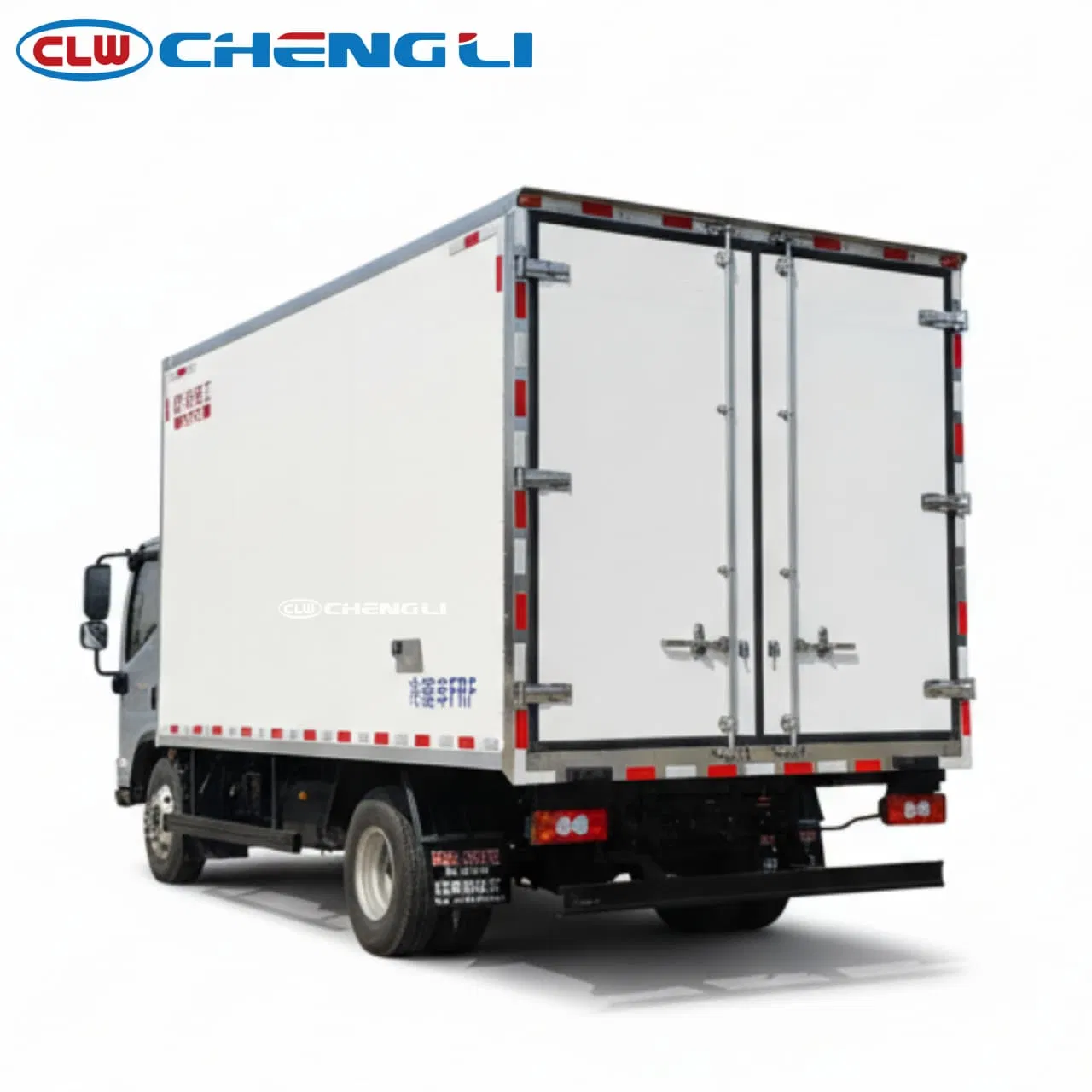

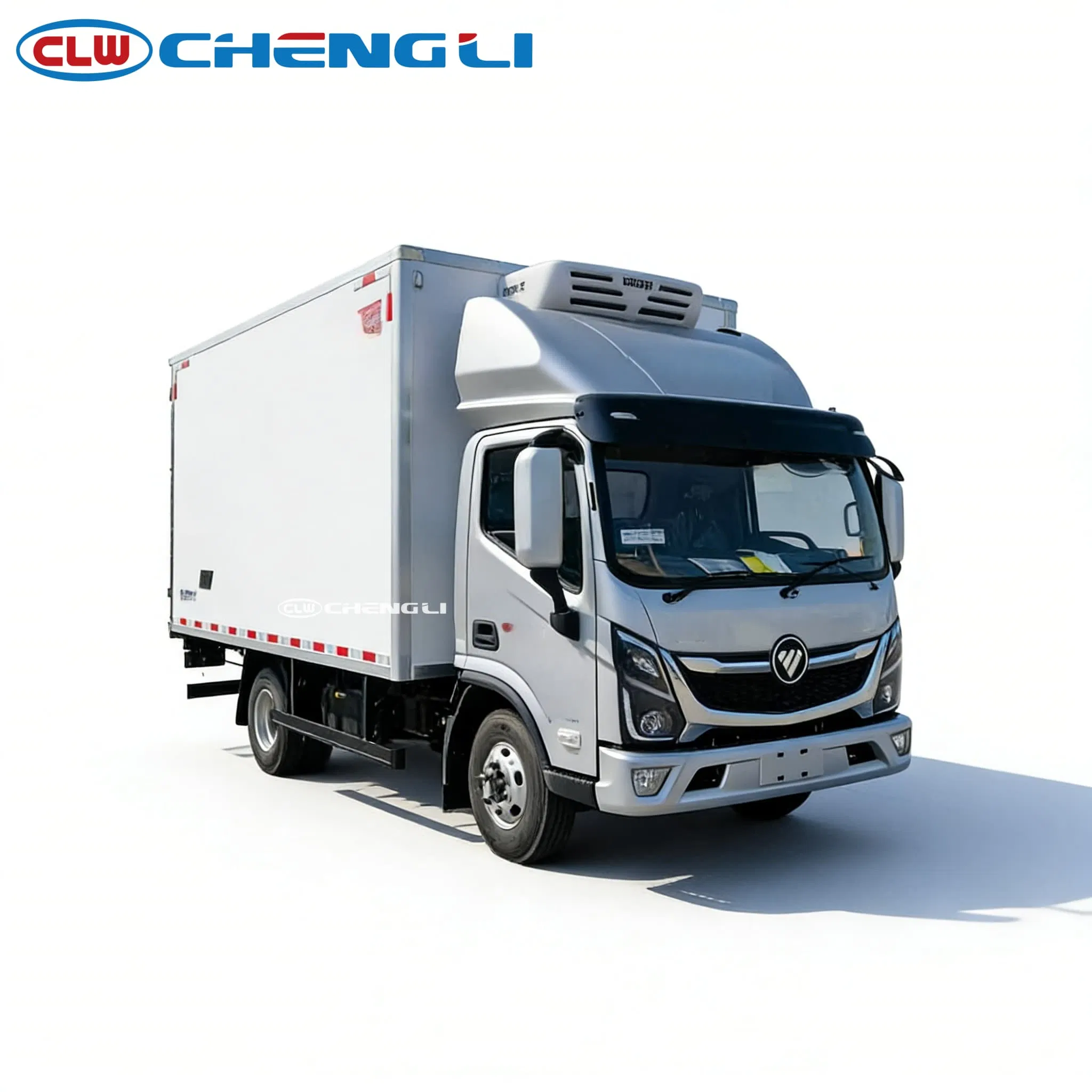

Foton 4 t Refrigerated Truck for Cold-Chain Distribution
A factory-built refrigerated truck for food, beverage and pharmaceutical distribution in West and East Africa. Insulated body with refrigeration unit on a Foton chassis — about 1.3 t per legal run; temperature class confirmed against the load before production.
Core capabilities
| Parameter | What it means on the job | Conditions | Factors that change the result |
|---|---|---|---|
| 4,495 kg GVW − 3,200 kg curb = 1,295 kg | About 1.3 t of goods per legal run on multi-drop routes | Factory curb weight as built; insulation and unit add weight | Body volume, insulation thickness and refrigeration unit |
Specifications
| Manufacturer | CLW Group |
|---|---|
| Vehicle Model | Box type dangerous goods transport vehicle |
| Chassis Brand | Foton |
| Fuel Type | Diesel |
| Emission Standard | Euro 2/3/4/5/6 |
| Transmission | Manual |
| Gross Vehicle Weight (kg) | 4495 |
| Curb Weight (kg) | 3200 |
| Overall Length (mm) | 5995 |
| Overall Width (mm) | 2260 |
| Overall Height (mm) | 3300 |
| Maximum Speed (km/h) | 110 |
Parameters depend on the configuration; final values are fixed in the specification annexed to the contract.
This 4×2 Foton refrigerated truck keeps chilled and frozen goods at temperature on city and inter-city distribution runs. The insulated body works within a 4,495 kg GVW, carrying about 1.3 t of goods per legal run.
The refrigeration unit holds the set point through door openings on multi-drop routes, and body volume with insulation thickness are matched to the products and dwell time before production — fresh produce, frozen food and pharmaceuticals each need a different temperature class.
As a factory build from CLW Group, the specification is fixed in writing before production; export documents are prepared for the destination market and the unit ships by RO-RO or flat-rack via Lagos, Tema, Mombasa and Dar es Salaam.
Frequently asked questions
What engine does this truck use?
It uses a Foton Cummins F2.5NS6B172 2.5L diesel engine with 163HP and 460N·m torque.
Does it meet national emission standards?
Yes, it fully complies with China VI emission standards and is legal for registration nationwide.
What is the size of the refrigerated box?
The box dimensions are 4.085×2.1×2.1m with a large loading space for cold-chain goods.
What is the lowest temperature the box can reach?
The box can stably maintain a low temperature down to -18℃ for deep-frozen cargo transportation.
How is the fuel consumption of this vehicle?
With a high-efficiency Cummins engine and EP power switch, it has excellent fuel economy.
What is the capacity of the fuel tank?
It is equipped with a 150L large fuel tank for long-endurance transportation.
Is this a blue-plate truck?
Yes, it is a standard blue-plate light truck with full urban road access rights.
What configurations are available in the cab?
It has a wide cab, shock-absorbing seat, cruise control, electric heated mirrors and Bluetooth.
How strong is the load capacity of the chassis?
It uses a 215mm straight through frame and 3/8+6 leaf springs for heavy-load transportation.
What kind of goods can it transport?
It can carry fresh produce, frozen food, meat, dairy, vaccines, flowers and other temperature-sensitive goods.
Data source & status
Specifications on this page are documented from the CLW Group supplier listing and re-checked against the working requirement in the quotation.
