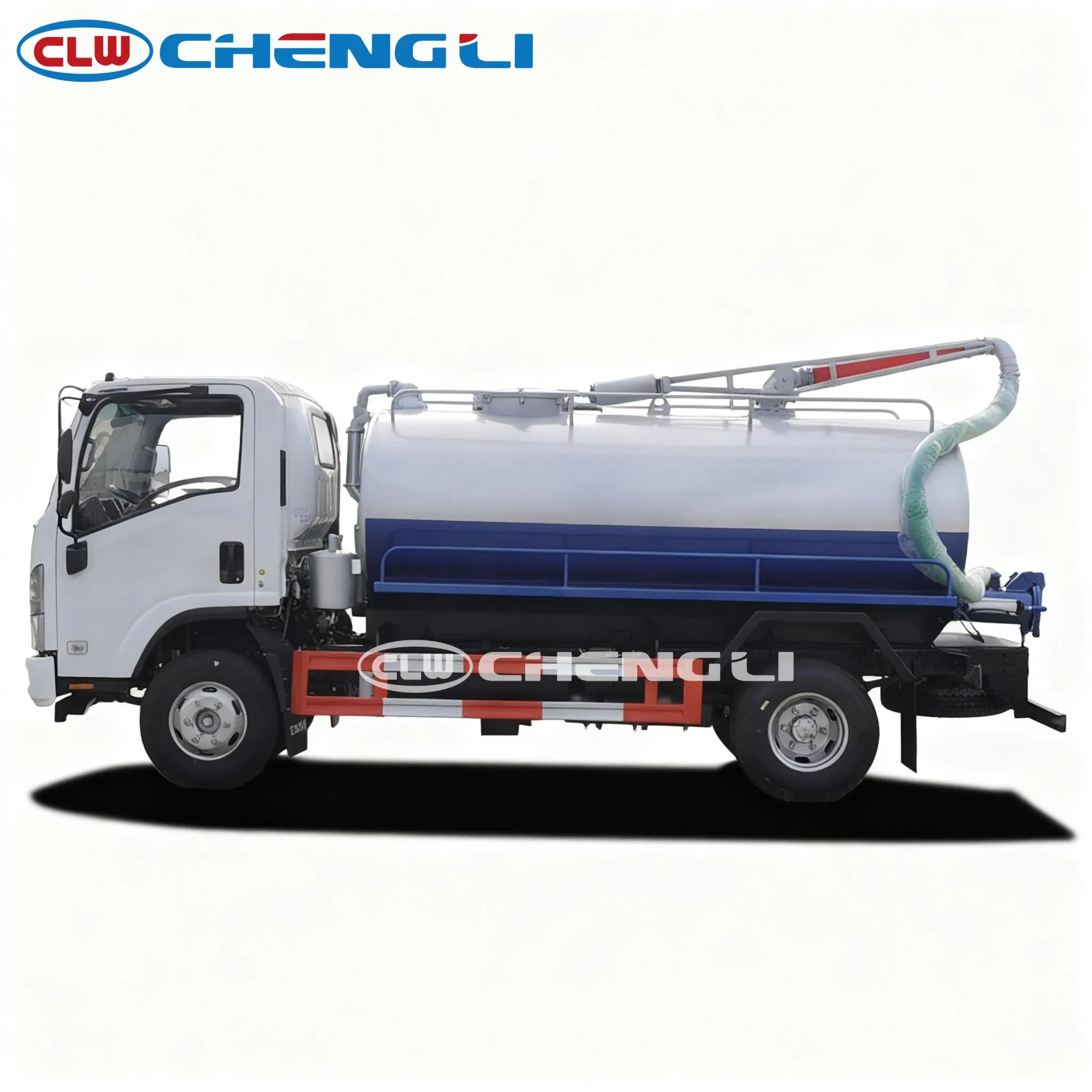

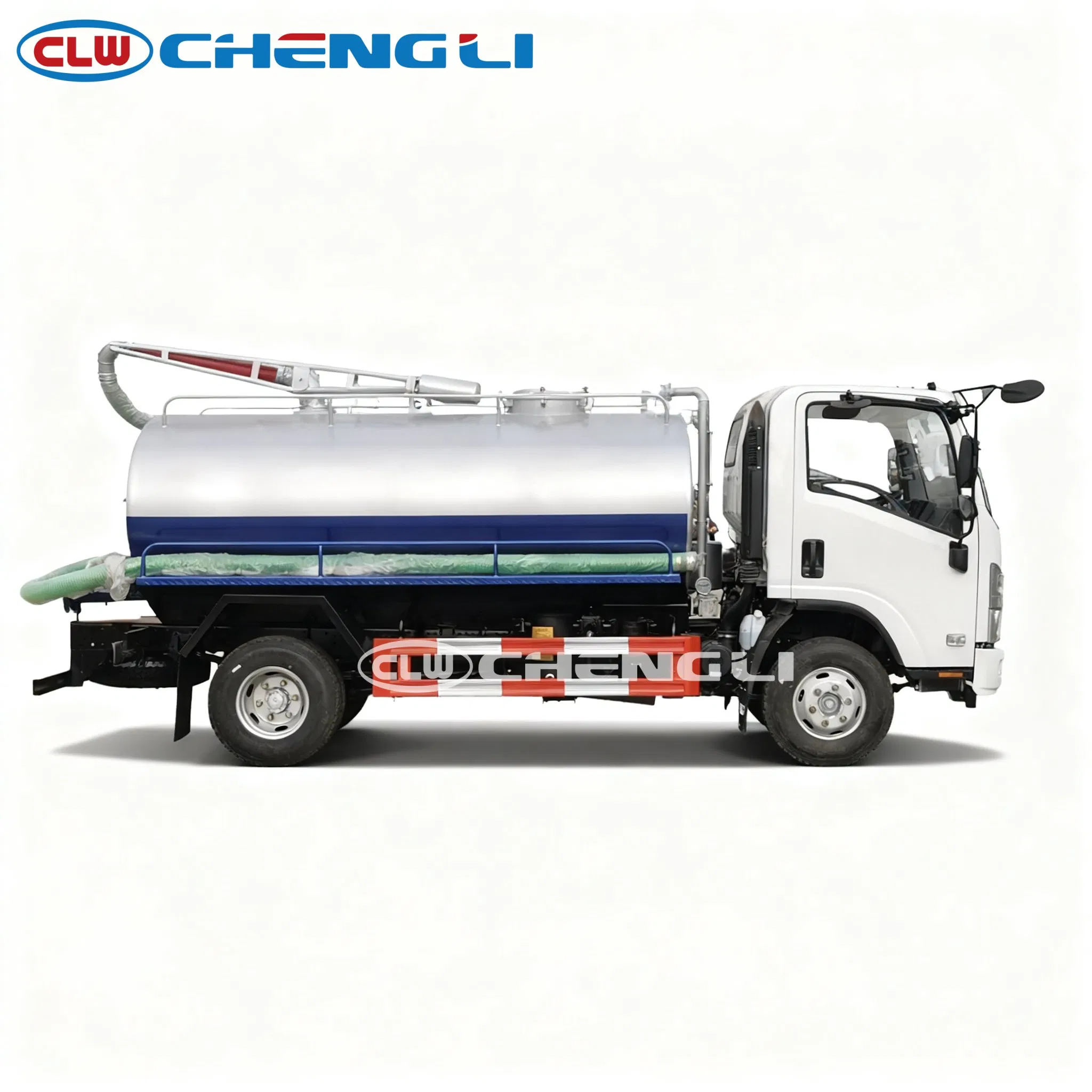

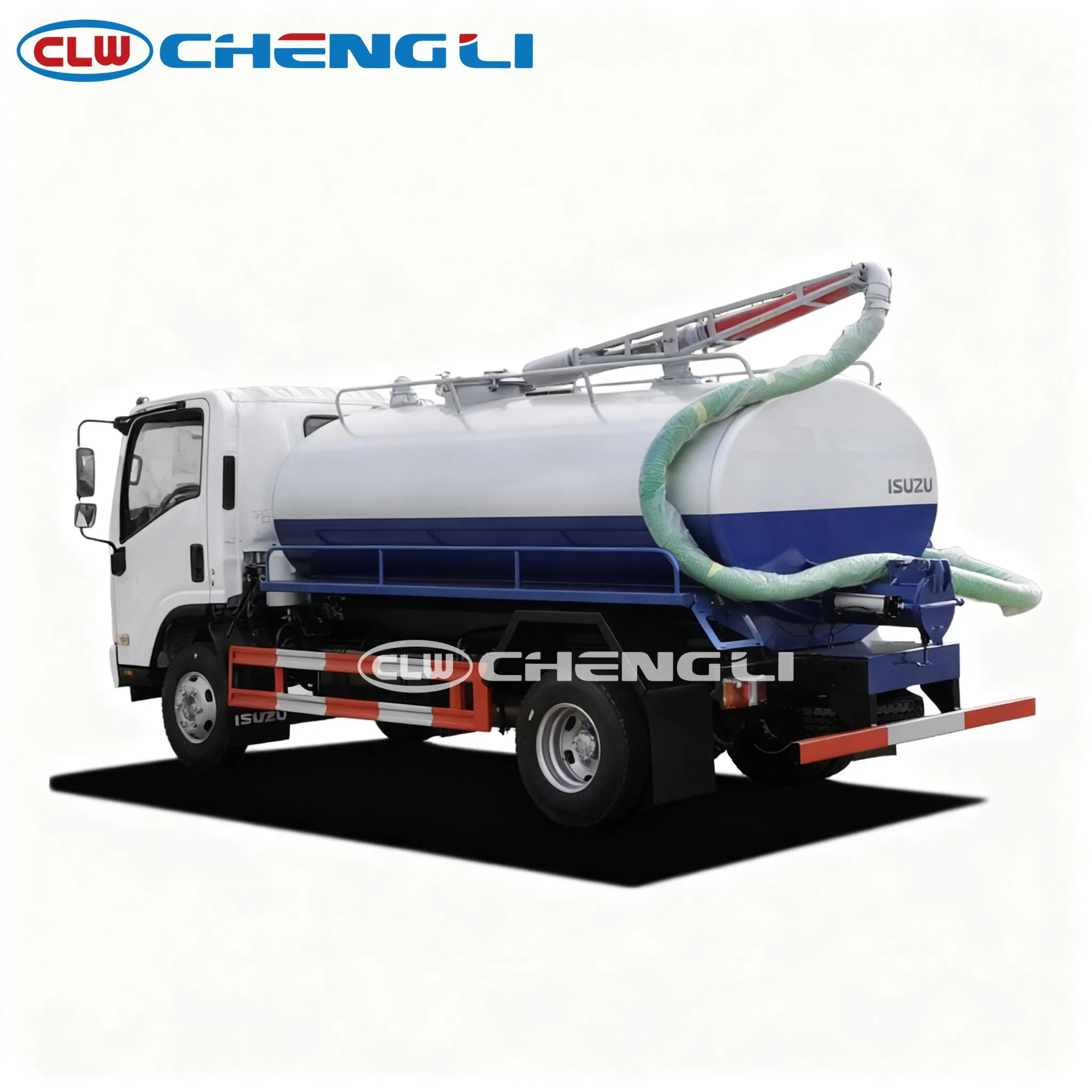

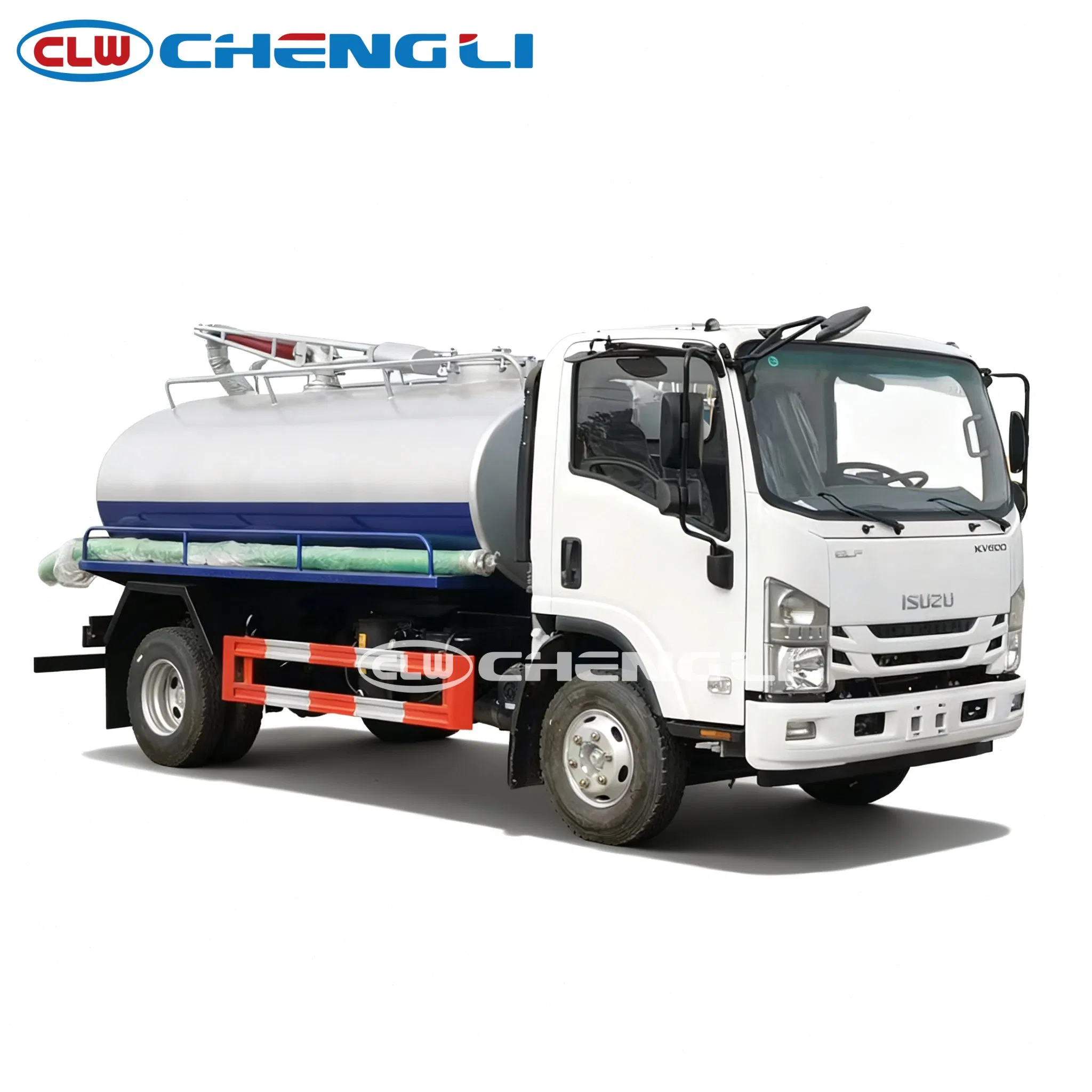

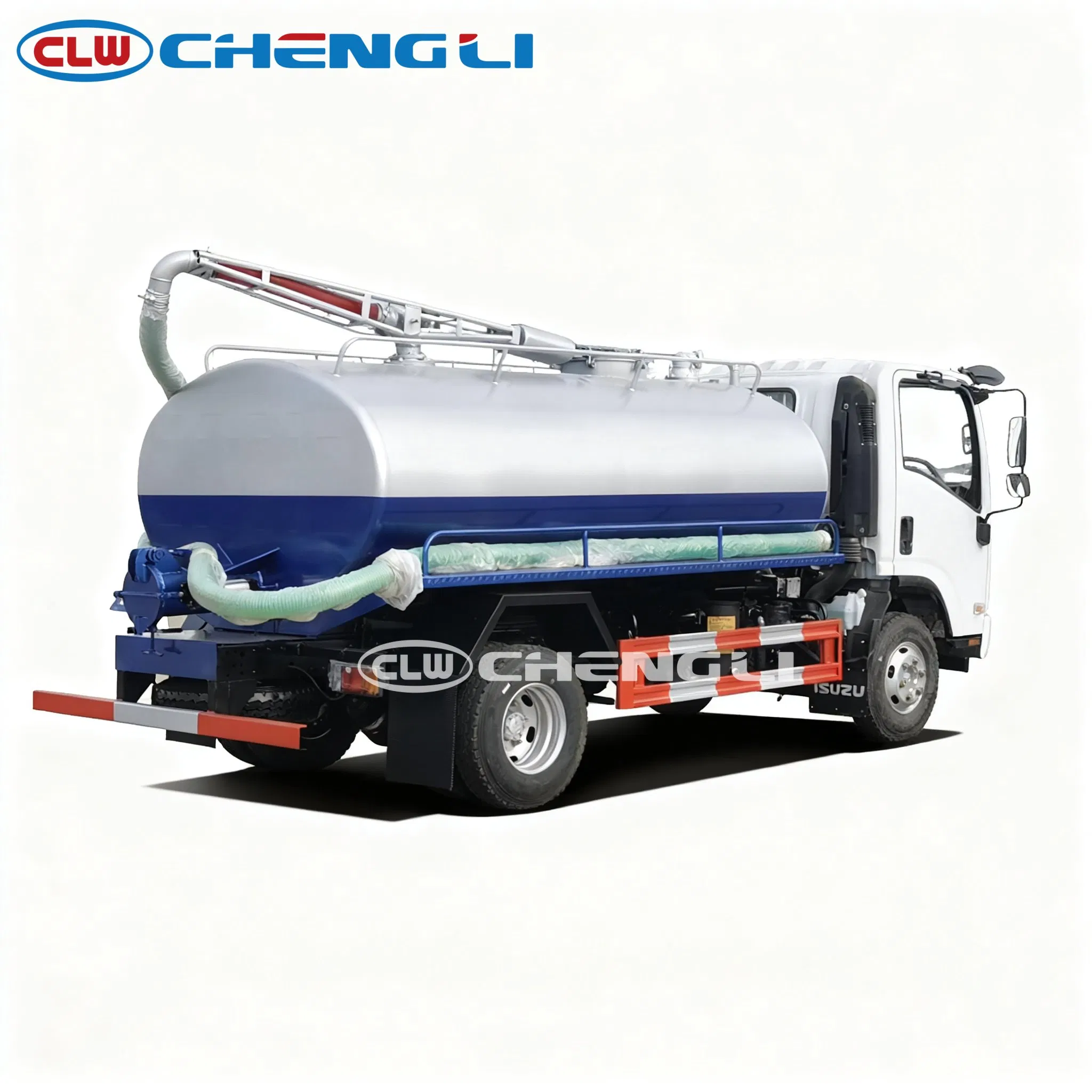

Isuzu 6.0 m³ Vacuum Sewage Truck for Septic and Sludge Service
A factory-built vacuum sewage truck for septic and pit emptying, sewer and sludge work in West and East Africa. 6.0 m³ sealed tank on a Isuzu chassis with a high-vacuum pump; tank volume and suction duty confirmed before production.
Core capabilities
| Parameter | What it means on the job | Conditions | Factors that change the result |
|---|---|---|---|
| 6.0 m³ sealed sludge tank | Holds roughly 5.4–6.6 t of liquid waste per full load | Waste density 0.9–1.1 t/m³ (near water); GVW limits apply | Waste composition, water content and foam control |
| Anti-overflow valve + level gauge + sight glass | The pump stops before the tank overfills, keeping the job clean | Standard vacuum system | Waste foaming and pump condition |
Specifications
| Manufacturer | CLW Group |
|---|---|
| Vehicle Model | CLW5080GXE |
| Chassis Brand | Isuzu |
| Drive Layout | 4x2 |
| Fuel Type | Diesel |
| Emission Standard | Euro 2/3/4/5/6 |
| Engine Model | Yuchai/Yunnei |
| Transmission | 6-Speed Manual |
| Wheelbase | 3,300 |
| Overall Length (mm) | 5995 |
| Overall Width (mm) | 2080 |
| Overall Height (mm) | 2640 |
| Maximum Speed (km/h) | 88 |
Parameters depend on the configuration; final values are fixed in the specification annexed to the contract.
This 4x2 Isuzu vacuum truck empties septic tanks, pit latrines and sumps, and clears sewer and site sludge. The 6.0 m³ sealed tank is built in q235 carbon steel (anti-rust treatment) with anti-corrosion treatment.
The high-vacuum pump draws waste through the suction hose with an anti-overflow valve, level gauge and sight glass keeping the operation clean. A high-pressure cleaning function and hose reel are available for combined suction and jetting duty. Tank volume and suction system are confirmed against the route before production.
As a factory build from CLW Group, the specification is fixed in writing before production; export documents are prepared for the destination market and the unit ships by RO-RO or flat-rack via Lagos, Tema, Mombasa and Dar es Salaam.
Frequently asked questions
Do you provide after-sales service overseas?
Yes, we have partnered service centers in key regions.
Can I request a customized bucket size?
Absolutely! We offer tailored attachments.
What documents do you provide for export?
Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
How do I place an order?
Contact us via email/phone for a quote, then confirm with a PO.
Can the tank of a vacuum truck be customized?
Yes, the size of the tank can be customized, and our tanks can be categorized into monoblock tanks and split tanks according to your requirements.
Besides personal purchases, can I collaborate with you?
We are a factory directly from the source. If you possess the corresponding qualifications and conditions, we welcome the opportunity to collaborate with you in developing the automotive market in your company's location.
Data source & status
Specifications on this page are documented from the CLW Group supplier listing and re-checked against the working requirement in the quotation.
