Water Trucks & Bowsers

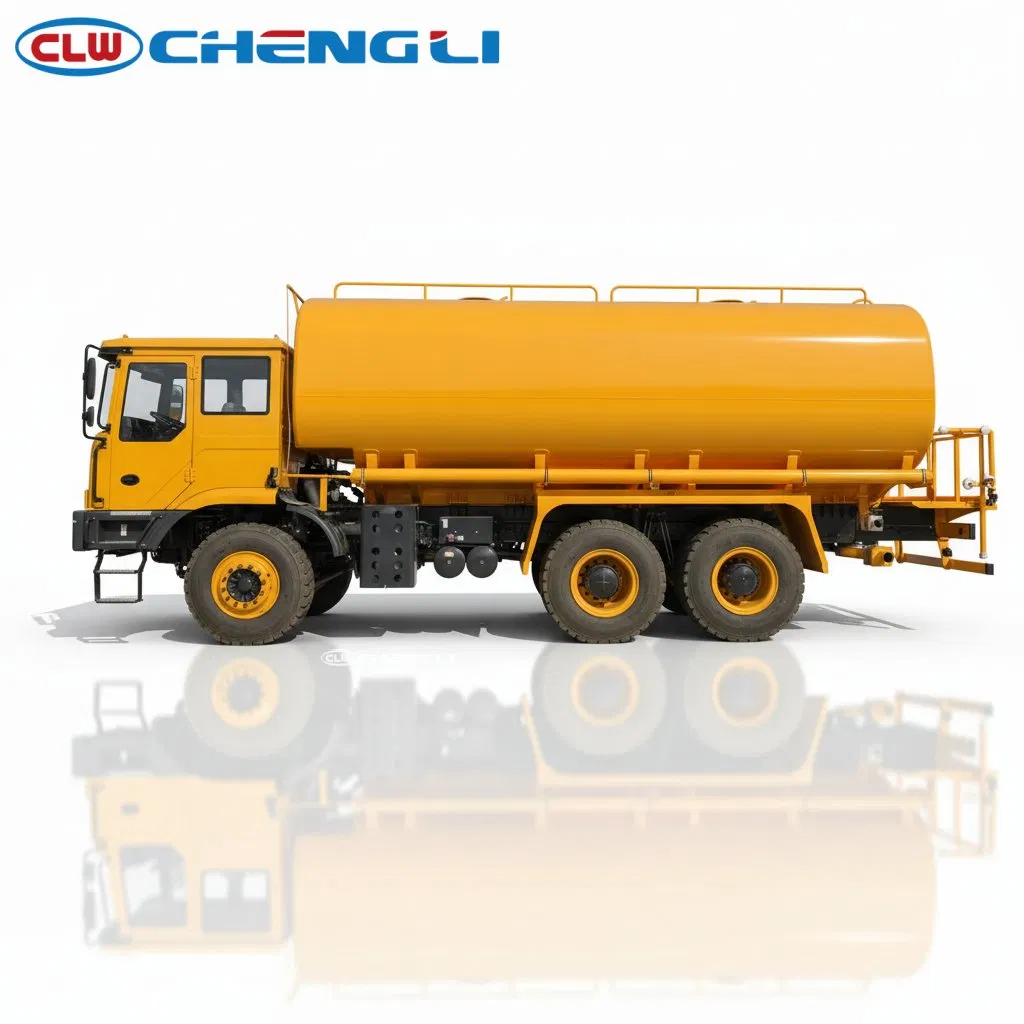

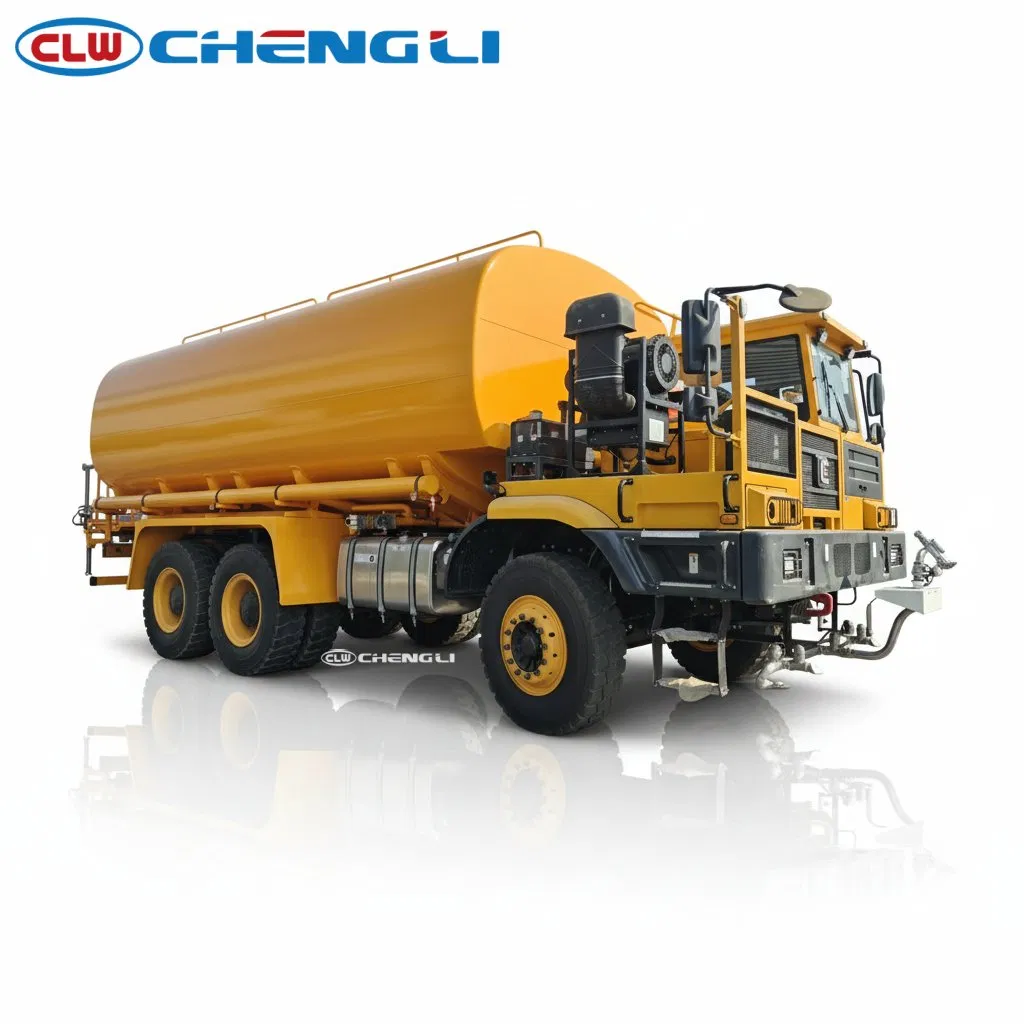

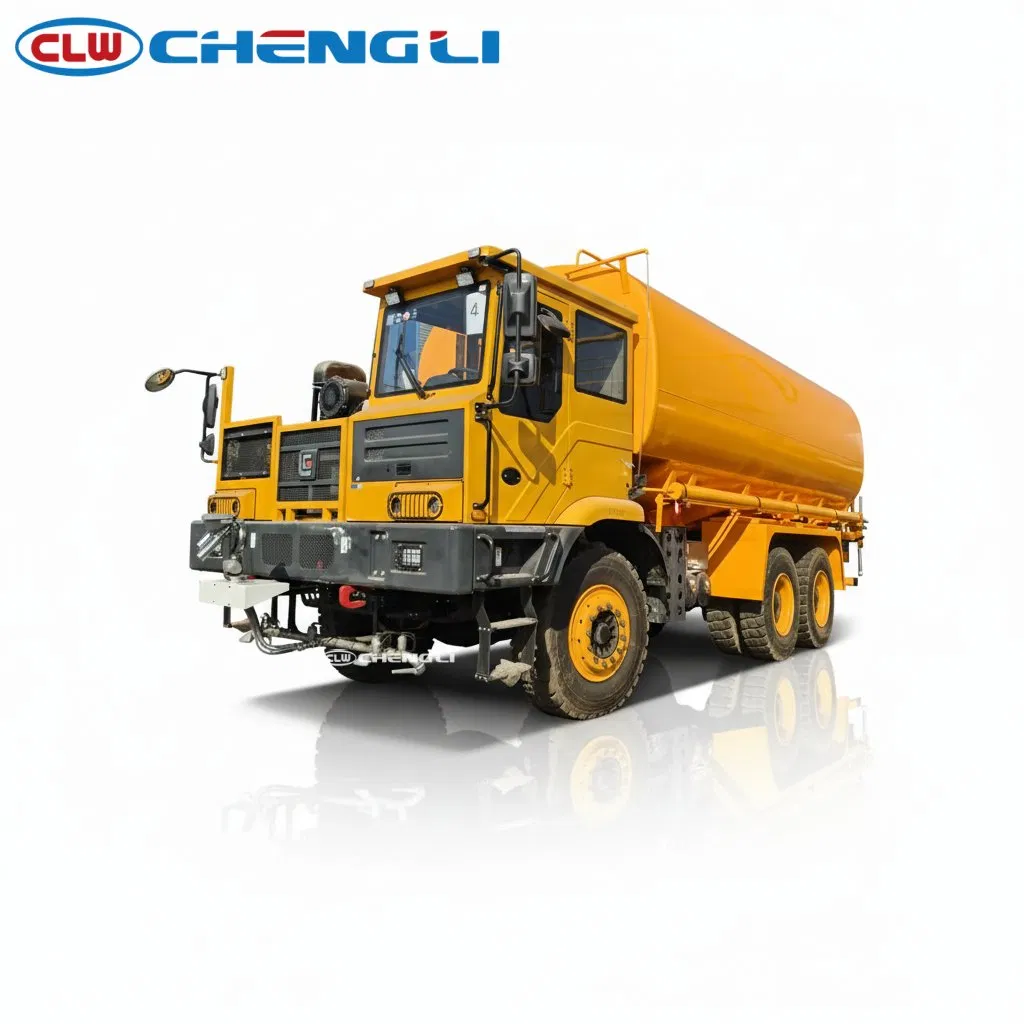

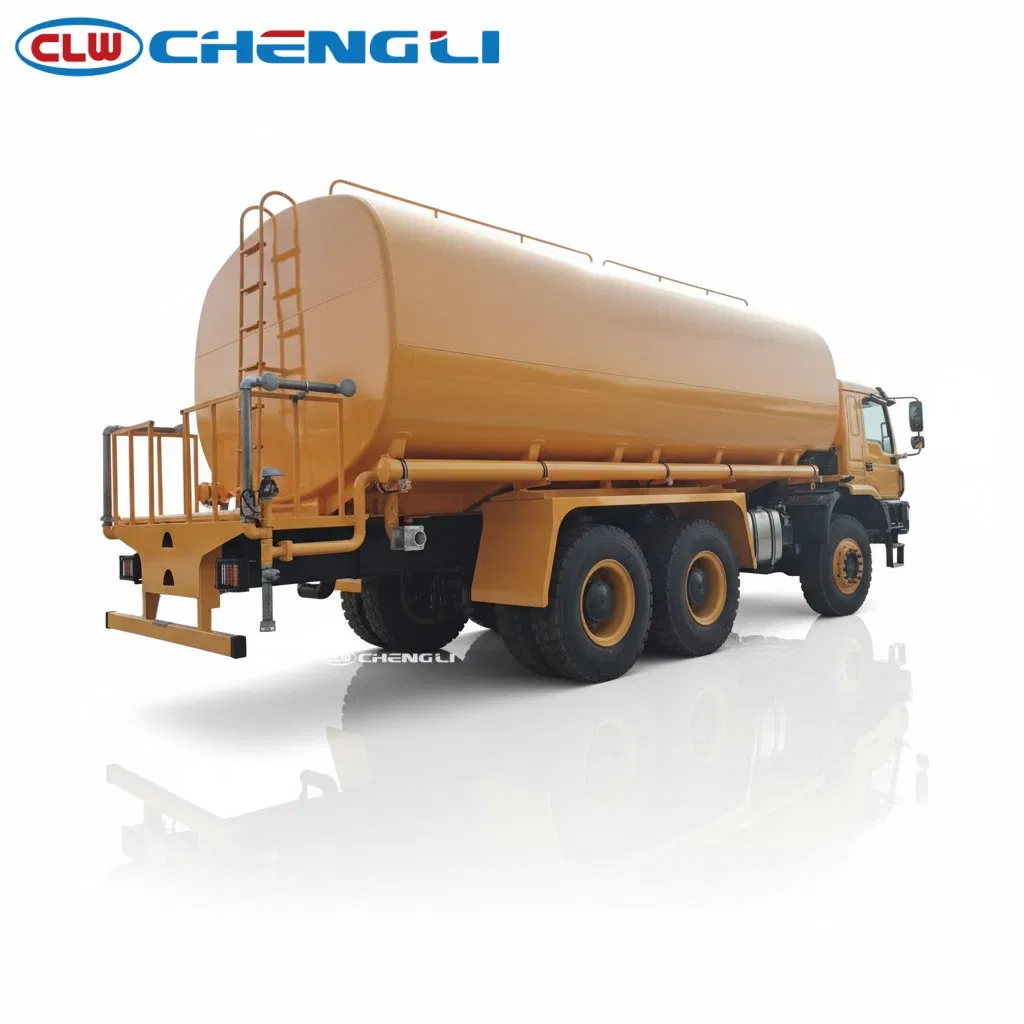

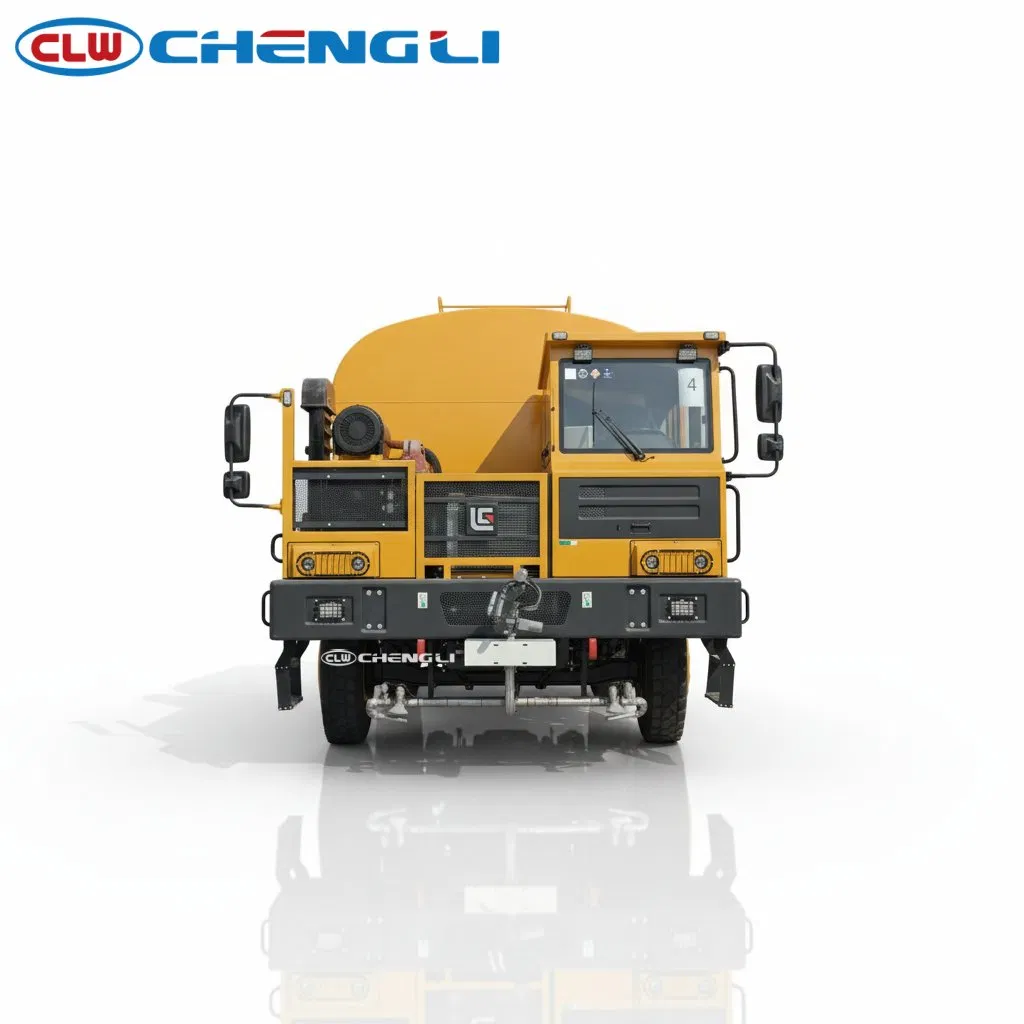

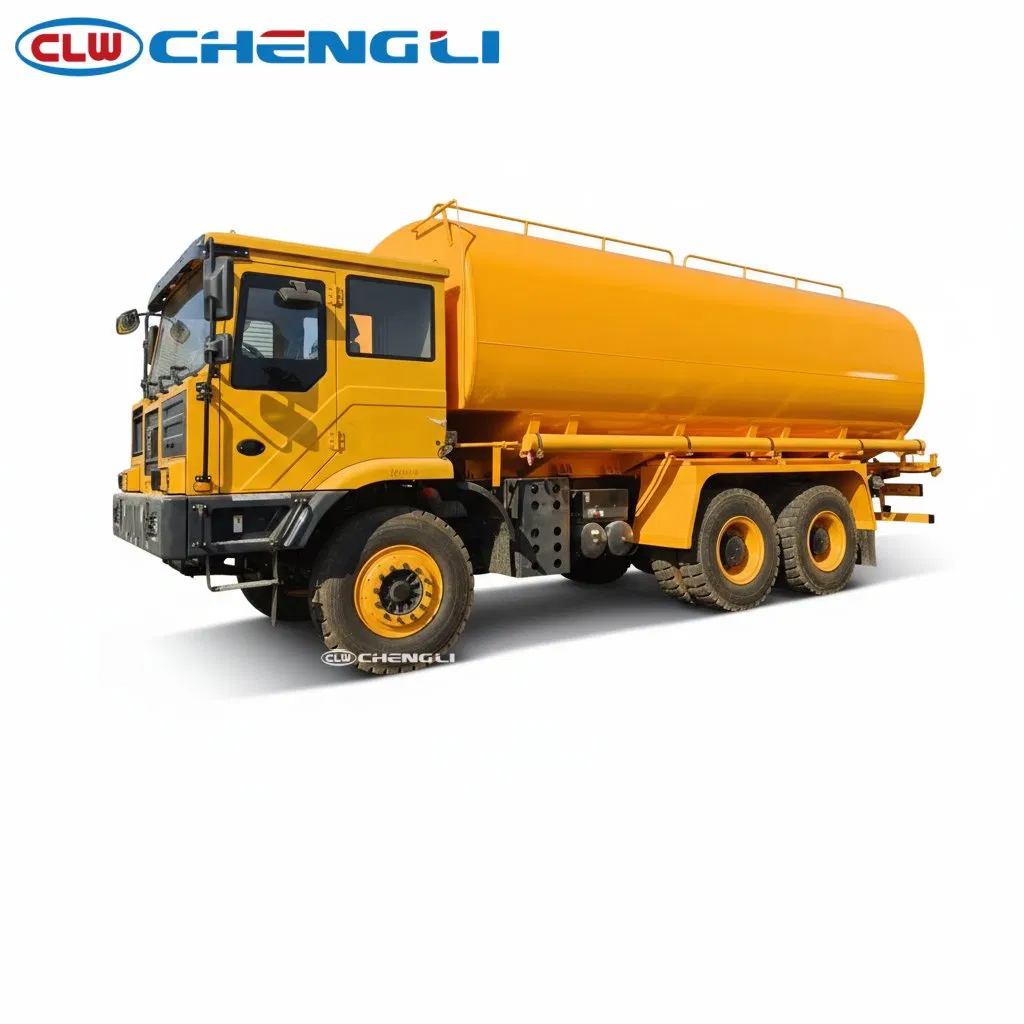

CLW 50,000 Litre Water Truck for Road Watering and Dust Control
A factory-built water truck for municipal road watering, site supply and dust control in West and East Africa. 50,000-litre baffled tank on a CLW chassis; tank size and pump confirmed against the route before production.
Core capabilities
| Parameter | What it means on the job | Conditions | Factors that change the result |
|---|---|---|---|
| 50,000 litre tank | One full tank waters roughly 250–833 km of road before refilling | Sprinkling intensity of 60–200 litres per road-kilometre at working speed | Dust level, road width, spray pattern and temperature |
| Sprinkling width ＞16m | Waters a full carriageway lane in one pass | Standard front spray and rear sprinkler set | Nozzle condition, pressure and speed |
Specifications
| Manufacturer | CLW Group |
|---|---|
| Vehicle Model | CLW Mine Field Water Truck |
| Chassis Brand | CLW |
| Drive Layout | 6×6 |
| Fuel Type | Diesel |
| Emission Standard | Euro 2/3/4/5/6 |
| Engine Model | YC6K.480 |
| Transmission | Manual |
| Wheelbase | 3950 + 1350 mm |
| Curb Weight (kg) | 31000 |
| Overall Length (mm) | 9075 |
| Overall Width (mm) | 3450 |
| Overall Height (mm) | 4300 |
| Maximum Speed (km/h) | 45 |
Parameters depend on the configuration; final values are fixed in the specification annexed to the contract.
This 6×6 CLW water truck waters roads, supplies sites and keeps dust down on haul routes. The baffled tank holds 50,000 litres, with anti-surge baffles keeping the load stable when part-full.
Front spray, rear sprinkler and side nozzles water the road in one pass across ＞16m. Tank size, pump specification and spraying gear are matched to the route before production.
As a factory build from CLW Group, the specification is fixed in writing before production; export documents are prepared for the destination market and the unit ships by RO-RO or flat-rack via Lagos, Tema, Mombasa and Dar es Salaam.
Frequently asked questions
What is the primary function of this vehicle?
Its primary function is heavy-duty dust suppression on mine haul roads and construction sites, using a high-capacity water tank and powerful spray system to improve air quality, visibility, and site safety.
What is the maximum water capacity of the tank?
The tank has an impressive 50-cbm (50,000-liter) effective volume, allowing for extended operation and coverage of large surface areas before requiring a refill.
Is the chassis capable of handling such heavy loads in a mine environment?
Yes. It is built on the robust DW90A chassis with a design payload of 59,000 kg (59 tonnes). Its powerful 353 kW engine and 2200 Nm of torque are specifically engineered to reliably handle the full weight of the tank and water on steep, rugged terrain.
What material is the tank made of, and is it corrosion resistant?
The tank is constructed from high-strength Q355 steel (8mm thickness). Crucially, it features an 8mm protective plastic lining to ensure exceptional resistance against corrosion and contamination often found in mine site water sources.
What are the key features of the water delivery system?
The system includes a high-performance BX-80QZB60/90S pump, comprehensive plumbing for self-priming/self-draining, and a full range of nozzles, including front flushing nozzles, rear sprinklers, side sprays, and a dedicated firefighting interface for emergency use.
How does the vehicle manage the water load while driving?
The tank features robust 8mm thick internal baffles that are fully welded. These baffles minimize water sloshing (fluid surge) during acceleration, braking, and turning, which is essential for maintaining stability on uneven mining roads.
Can this truck be used for purposes other than dust suppression?
Yes. It is also designed to serve as a high-capacity mobile fire suppression unit and can be used for tasks requiring bulk water transport, site washing, and soil compaction support.
Data source & status
Specifications on this page are documented from the CLW Group supplier listing and re-checked against the working requirement in the quotation.
