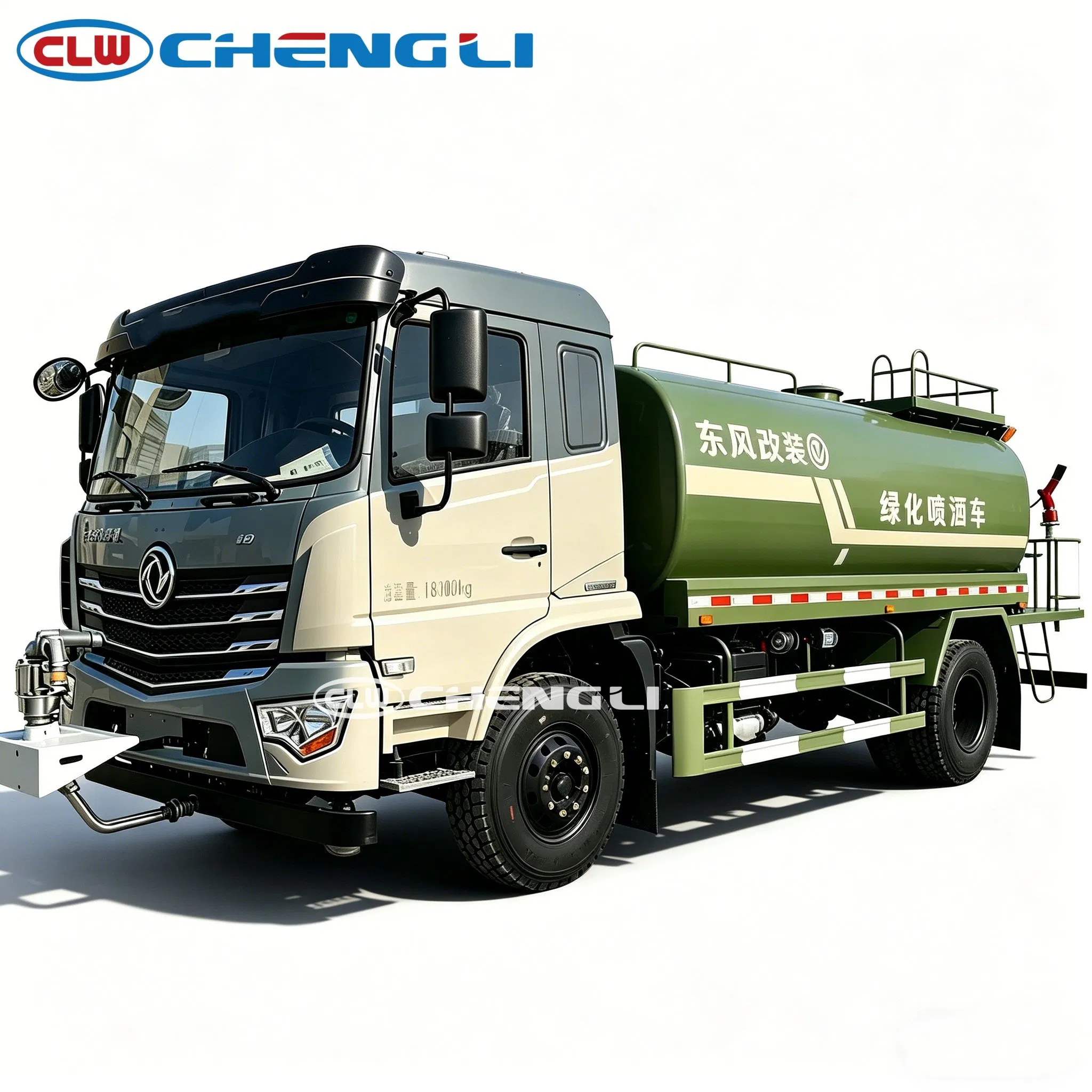

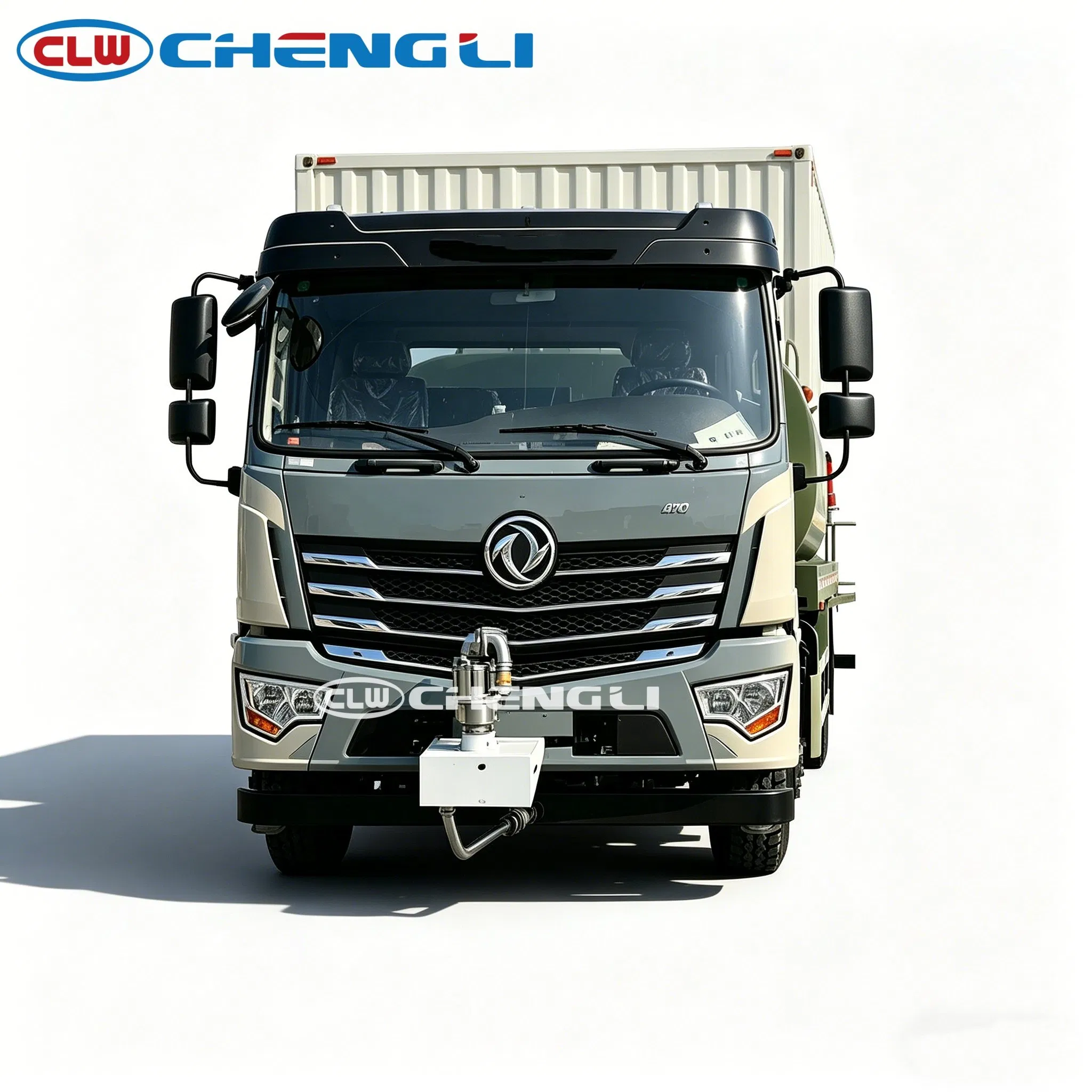

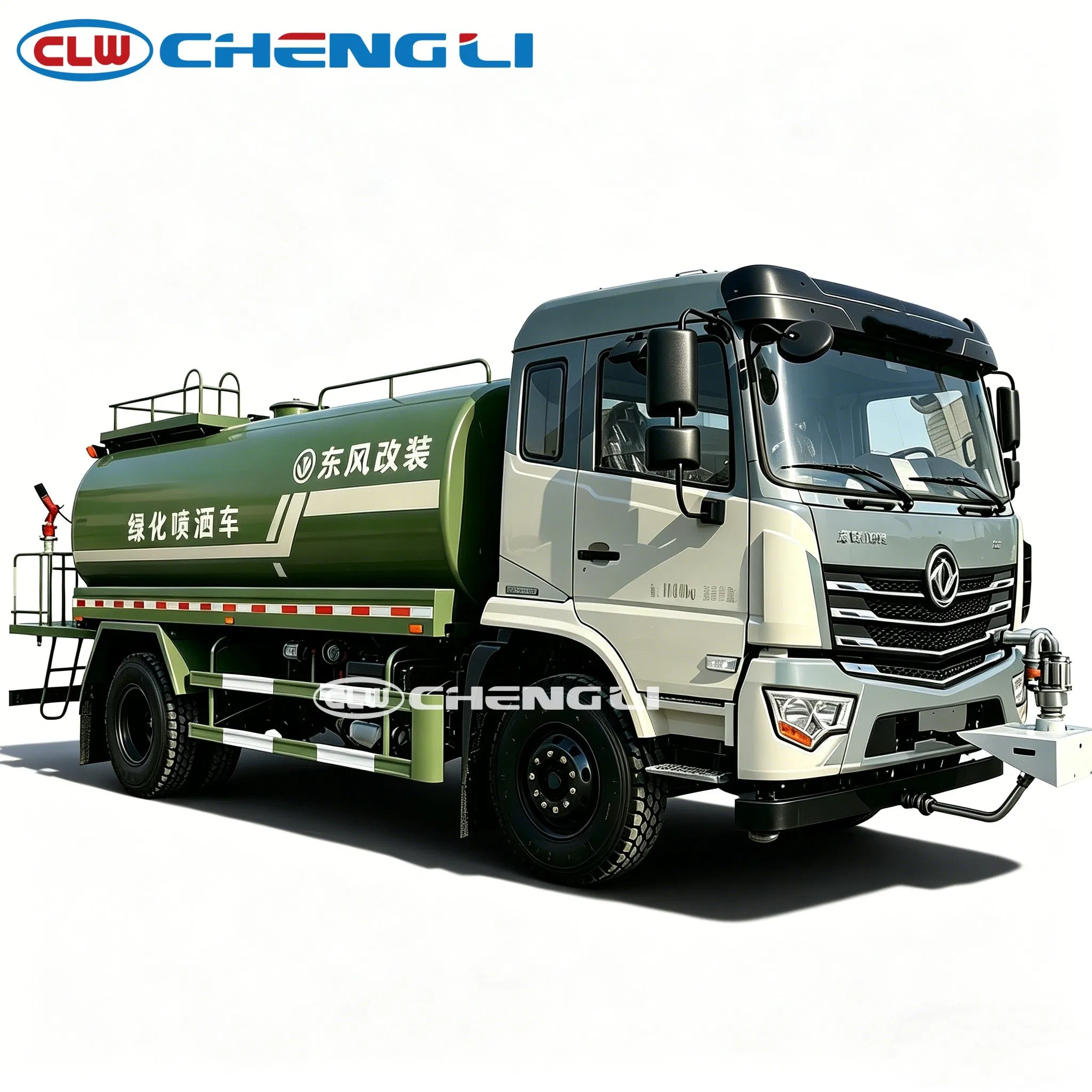

Dongfeng 12,500 Litre Water Truck for Road Watering and Dust Control
A factory-built water truck for municipal road watering, site supply and dust control in West and East Africa. 12,500-litre baffled tank with a 60-90/50-110(optional) pump on a Dongfeng chassis; tank size and pump confirmed against the route before production.
Core capabilities
| Parameter | What it means on the job | Conditions | Factors that change the result |
|---|---|---|---|
| 12,500 litre tank | One full tank waters roughly 62–208 km of road before refilling | Sprinkling intensity of 60–200 litres per road-kilometre at working speed | Dust level, road width, spray pattern and temperature |
| Sprinkling width ＞16m | Waters a full carriageway lane in one pass | Standard front spray and rear sprinkler set | Nozzle condition, pressure and speed |
| Water pump 60-90/50-110(optional) | Fills the tank from a hydrant or open water between rounds | Pump rating at the factory test point | Suction lift, hose length and water cleanliness |
Specifications
| Manufacturer | CLW Group |
|---|---|
| Vehicle Model | CLW5160 |
| Chassis Brand | Dongfeng |
| Drive Layout | 4×2 |
| Fuel Type | Diesel |
| Emission Standard | Euro 2/3/4/5/6 |
| Engine Model | Yuchai |
| Transmission | 8-Speed Manual |
| Wheelbase | 3950mm |
| Gross Vehicle Weight (kg) | 16000 |
| Curb Weight (kg) | 62806480 |
| Overall Length (mm) | 7030 |
| Overall Width (mm) | 22002350 |
| Overall Height (mm) | 2800 |
| Maximum Speed (km/h) | 88 |
Parameters depend on the configuration; final values are fixed in the specification annexed to the contract.
This 4×2 Dongfeng water truck waters roads, supplies sites and keeps dust down on haul routes. The baffled tank holds 12,500 litres, with anti-surge baffles keeping the load stable when part-full.
Front spray, rear sprinkler and side nozzles water the road in one pass across ＞16m, with fog cannon and working platform for site use; the 60-90/50-110(optional) pump refills from a hydrant or open water between rounds. Tank size, pump specification and spraying gear are matched to the route before production.
As a factory build from CLW Group, the specification is fixed in writing before production; export documents are prepared for the destination market and the unit ships by RO-RO or flat-rack via Lagos, Tema, Mombasa and Dar es Salaam.
Frequently asked questions
What is the capacity range of the Water Sprinkler truck?
Models are available in various capacities, typically ranging from 5cbm to 35cbm, depending on customer requirements and operational needs.
Do you provide after-sales service overseas?
Yes, we have partnered service centers in key regions, and online support is available whenever you need.
What documents do you provide for export?
Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).
How do I place an order?
Contact us via email/phone for a quote, then confirm with a PO.
Data source & status
Specifications on this page are documented from the CLW Group supplier listing and re-checked against the working requirement in the quotation.
