Water Trucks & Bowsers

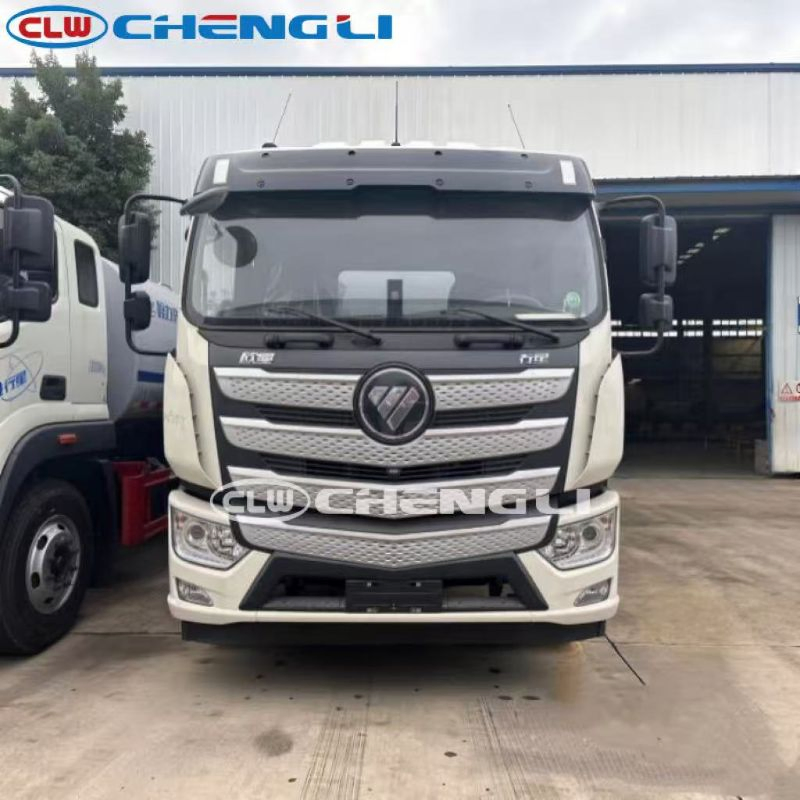

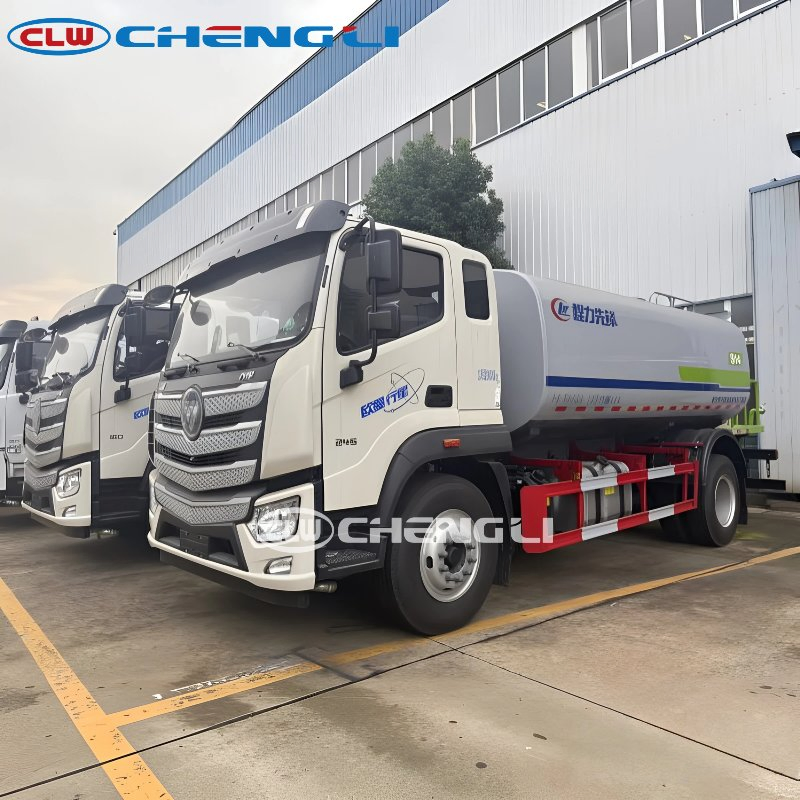

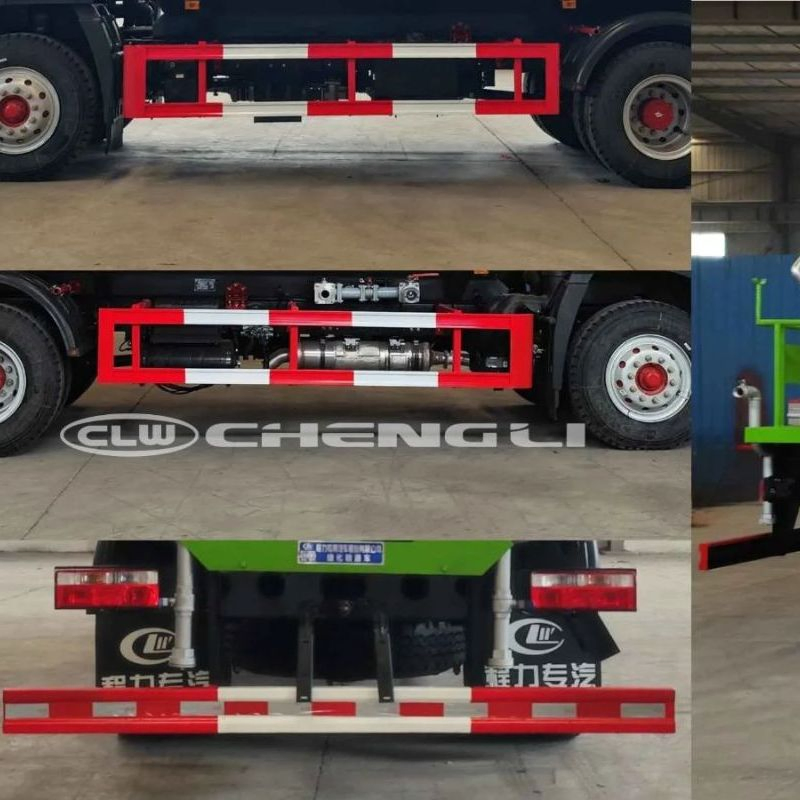

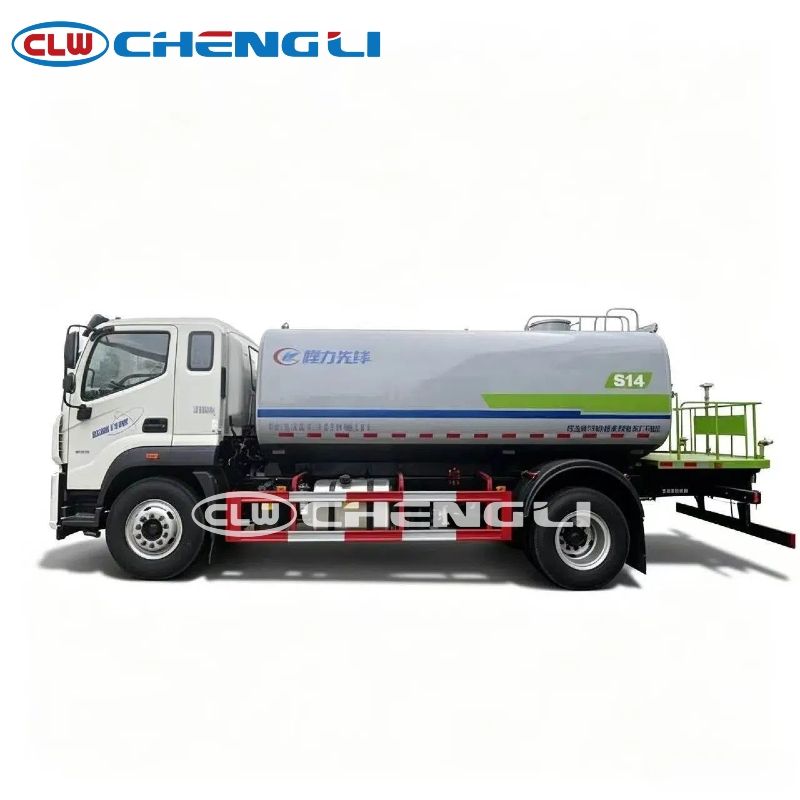

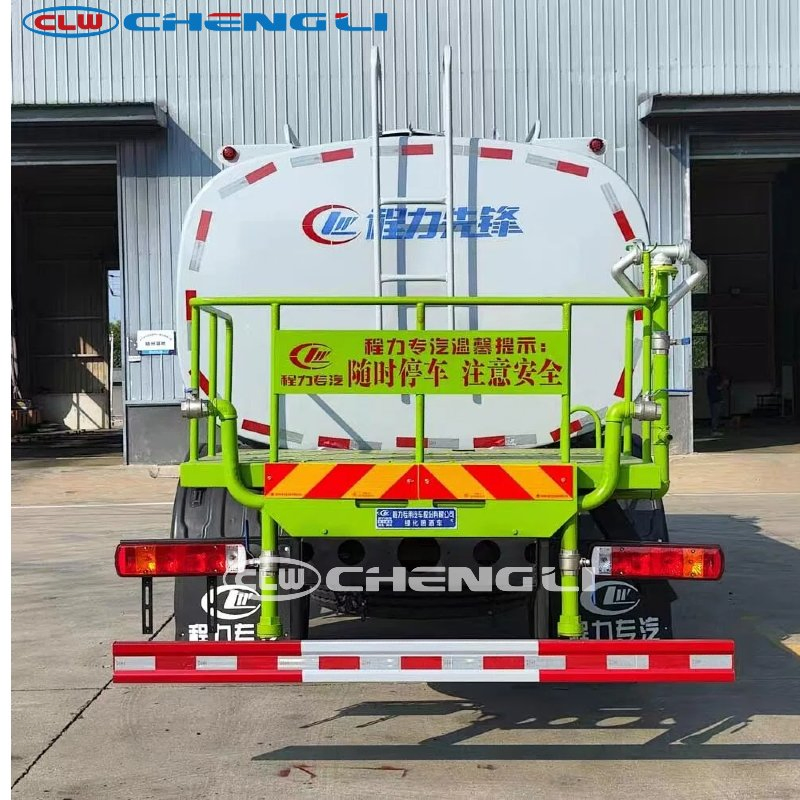

Foton Water Truck for Road Watering and Dust Control
A factory-built water truck for municipal road watering, site supply and dust control in West and East Africa. Baffled tank on a Foton chassis; tank size and pump confirmed against the route before production.
Core capabilities
| Parameter | What it means on the job | Conditions | Factors that change the result |
|---|---|---|---|
| 16,000 kg GVW − 6,360 kg curb = 9,640 kg | About 9.6 t of water plus crew and gear is legal on the chassis | Factory curb weight as built; destination road rules apply | Tank fill level, equipment fit and fuel |
| Sprinkling width 12 - 16m | Waters a full carriageway lane in one pass | Standard front spray and rear sprinkler set | Nozzle condition, pressure and speed |
Specifications
| Manufacturer | CLW Group |
|---|---|
| Vehicle Model | CLW5164 |
| Chassis Brand | Foton |
| Drive Layout | 4×2 |
| Fuel Type | Diesel |
| Emission Standard | Euro2/3/4/5/6 |
| Transmission | Manual |
| Wheelbase | 3950mm |
| Gross Vehicle Weight (kg) | 16000 |
| Curb Weight (kg) | 6360 |
| Overall Length (mm) | 7780 |
| Overall Width (mm) | 2550 |
| Overall Height (mm) | 3210 |
Parameters depend on the configuration; final values are fixed in the specification annexed to the contract.
This 4×2 Foton water truck waters roads, supplies sites and keeps dust down on haul routes. The baffled tank carries a full watering round — about 9.6 t of water legal on the 16,000 kg GVW, with anti-surge baffles keeping the load stable when part-full.
Front spray, rear sprinkler and side nozzles water the road in one pass across 12 - 16m. Tank size, pump specification and spraying gear are matched to the route before production.
As a factory build from CLW Group, the specification is fixed in writing before production; export documents are prepared for the destination market and the unit ships by RO-RO or flat-rack via Lagos, Tema, Mombasa and Dar es Salaam.
Frequently asked questions
What is the tank volume and material of this water sprinkler truck?
The nominal volume is 10.43m³ (actual 9.94m³). The tank is made of Wuhan Steel Q235 carbon steel with 4mm thickness for the body and 5mm for the heads, ensuring durability and corrosion resistance.
What are the key advantages of the piping system?
It uses aluminum alloy pipe fittings with one-time die-casting technology — no welds, anti-leakage, lightweight, and easy maintenance. Also equipped with stainless steel ball valves.
What engine power and emission standard does it adopt?
It adopts Yuchai 180HP (4-cylinder, 4.2L) as standard, with optional Yuchai 240HP (6.2L) available. Emission standard meets Euro VI requirement.
Is it suitable for winter operation?
Yes. It has a complete drain system (all drain ball valves) to prevent freezing. For winter operation, it is recommended to fill with warm water and keep a small water drip to avoid line freezing.
What drive form is adopted?
It adopts 4×2 drive form with a wheelbase of 3950 mm.
What safety devices are equipped for water spraying operation?
It is equipped with anti-wave baffles inside the tank, a filter strainer to prevent clogging, safety manhole cover, and a complete drain system for winter protection.
Can it be customized ?
Yes. Optional upgrades include aluminum alloy flange tee, aluminum alloy pump inlet straight pipe, high-pressure water cannon upgrade, and fog cannon (dust suppression) upon request.
Does it meet international depot access standards?
Yes. It is equipped with a standard fire hydrant connection for fast water filling, compatible with most municipal water sources.
Data source & status
Specifications on this page are documented from the CLW Group supplier listing and re-checked against the working requirement in the quotation.
