Dongfeng D9 10 m³ Food Waste Truck with Cummins 195 hp Engine
A factory-built food waste collection truck for restaurants, markets and catering collectors in Nigeria, Ghana, Kenya, Tanzania, Zambia and Zimbabwe. Ten-cubic-metre sealed tank on a Dongfeng D9 6×2 chassis with a Cummins 195 hp engine; tank volume and bin system confirmed against the route before production.
Core capabilities
| Parameter | What it means on the job | Conditions | Factors that change the result |
|---|---|---|---|
| 10 m³ sealed food waste tank | Holds roughly 3.5–5.5 t of kitchen waste per full load | Reference density 350–550 kg/m³; chassis GVW limits apply | Waste composition, moisture content and loading practice |
| 120 L / 240 L standard bin lift, ≤25 s cycle | Empties a standard kitchen-waste bin in about 25 seconds and returns it in 20 | Hydraulic lifter at working pressure with standard bins | Bin condition, load weight and crew practice |
| Discharge time ≤25 s | Push-out discharge empties the full tank in about 25 seconds at the treatment site | Hydraulic push-out at working pressure | Load consistency and tank condition |
| 195 hp (145 kW) Cummins diesel | Sustains full-day collection rounds and haulage to the treatment plant | Chassis rating at the factory test point | Altitude, load level, route gradient and maintenance |
| 700 L wastewater tank + 450 L clean water tank | Leachate is collected in a separate tank and the body is washed down on site | Standard configuration | Route length and number of collection points |
Specifications
| Manufacturer | CLW Group |
|---|---|
| Vehicle Model | CLW5160TCA6 |
| Chassis Brand | Dongfeng |
| Drive Layout | 6×2 |
| Fuel Type | Diesel |
| Emission Standard | China VI (National VI) |
| Engine Model | D4.0NS6B195 |
| Engine Power (kW) | 145.4 |
| Transmission | Manual |
| Wheelbase | 3950,4500 mm |
| Gross Vehicle Weight (kg) | 16200 |
| Curb Weight (kg) | 81507770 |
| Overall Length (mm) | 7000 |
| Overall Width (mm) | 2500 |
| Overall Height (mm) | 3300 |
| Maximum Speed (km/h) | 105 |
| Primary Capacity (m³) | 10 |
| Engine Brand | Cummins |
Parameters depend on the configuration; final values are fixed in the specification annexed to the contract.

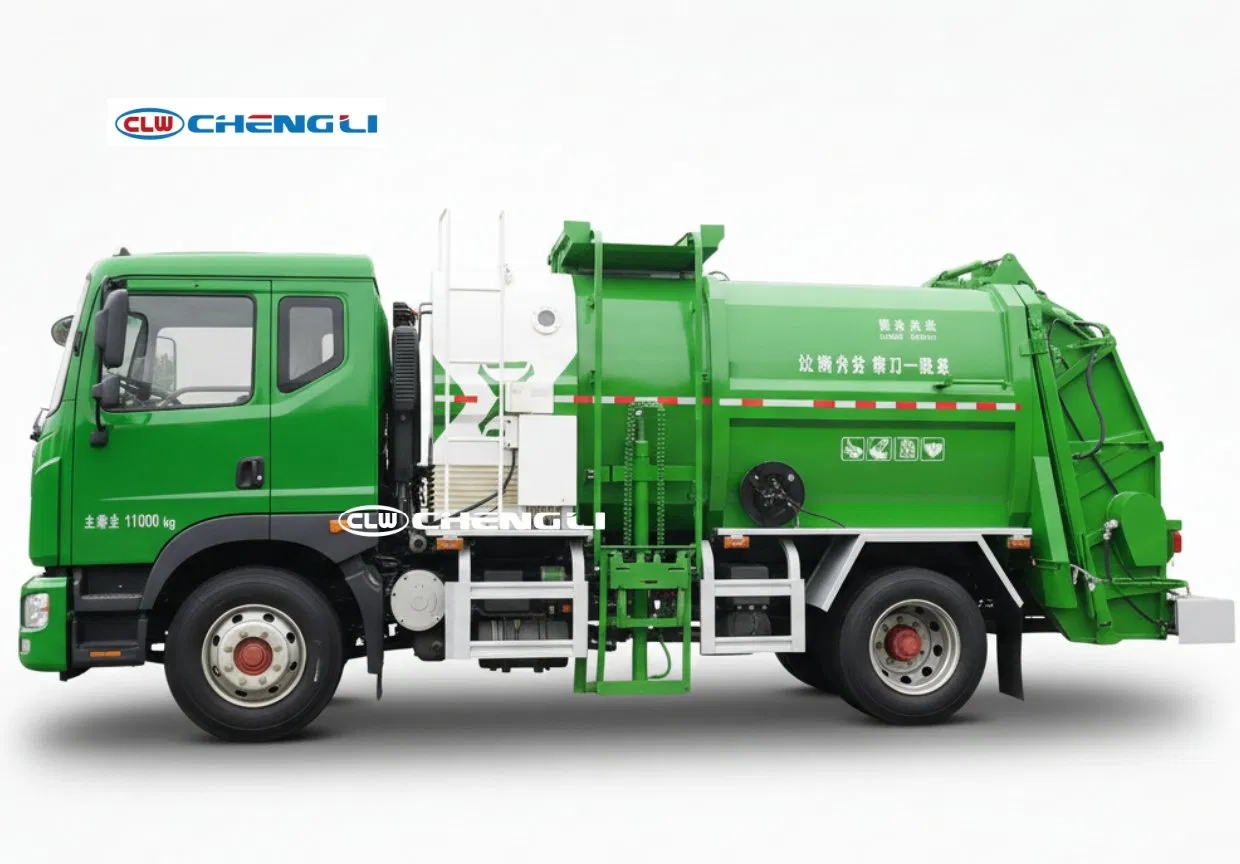

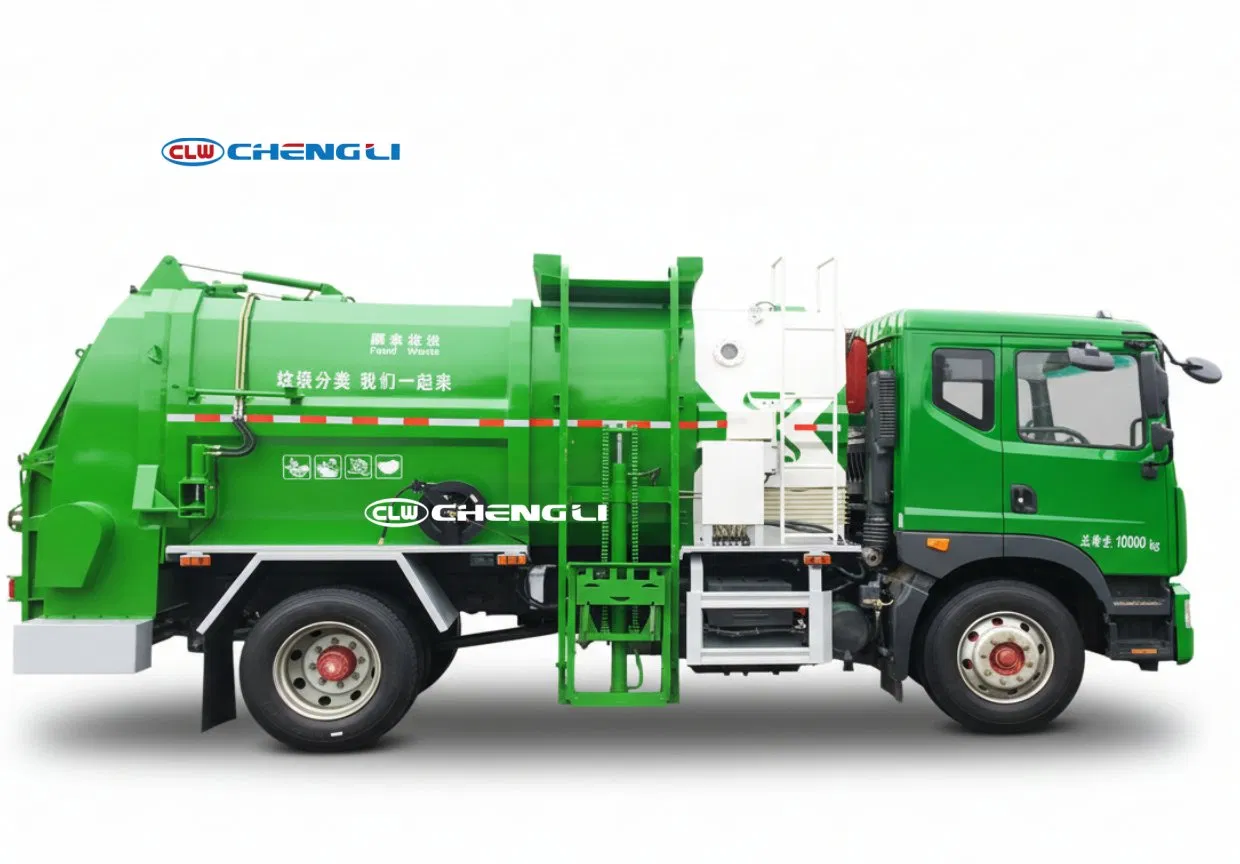

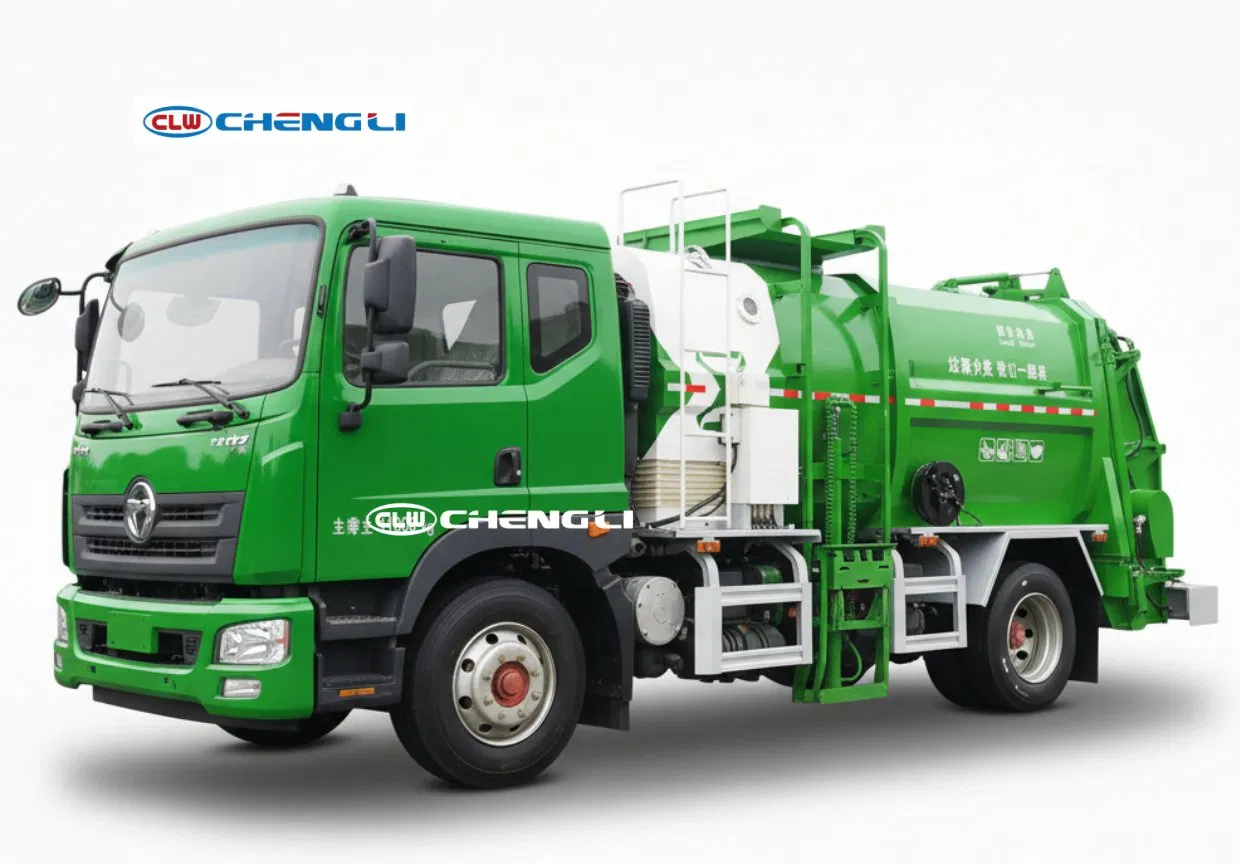

This food waste truck is built for collectors serving restaurants, markets, canteens and catering kitchens. The ten-cubic-metre sealed tank sits on a Dongfeng D9 6×2 chassis with a Cummins 195 hp (145 kW) diesel engine, and the whole unit measures 7,000 × 2,500 × 3,300 mm — a medium footprint that keeps access easy in town centres while carrying a full day of kitchen waste.
Standard 120 L and 240 L kitchen-waste bins are lifted, tipped and returned in about 25 seconds each, and the push-out mechanism empties the complete tank in the same time at the treatment site. Leachate is kept in a separate 700 L tank instead of dripping onto the road, and a 450 L clean-water tank with high-pressure washing keeps the loading area clean after each round. Tank heating, a weighing system and cab monitoring are fitted to make the round auditable and the payload countable.
The tank comes in 4 mm carbon steel as standard with a stainless-steel option for corrosive loads, and control, discharge and locking modes are configurable. As a factory build from CLW Group, the specification is fixed in writing against your route before production; export documents are prepared for the destination market and units ship by RO-RO or flat-rack via Lagos, Tema, Mombasa and Dar es Salaam, with land delivery quoted for landlocked markets.
Frequently asked questions
What's your minimum quantity?
1 set.
What is your packing and shipping method?
Naked packing, we transport our trucks by bulk cargo carrier, ro-ro or 40/45 HQ, or land transportation.
Why do you trust and choose us?
---Complete production line, from trailer Design to Delivery. --- ISO 9001: 2008 and CCC quality certificate. ---Use 100% famous brand spare parts you want. --- Accept customization requirements. ---We are trusted by clients from Africa, Australia, South America, Indonesia, and so on. ---We accept flexible payment terms, T/T, L/C, D/P ect.
Can I customize the painting and the logo?
Yes, we offer customized logos for any type.
Data source & status
Specifications on this page are documented from the CLW Group supplier listing and re-checked against the route requirement in the quotation. Export documents are prepared for the destination market.
