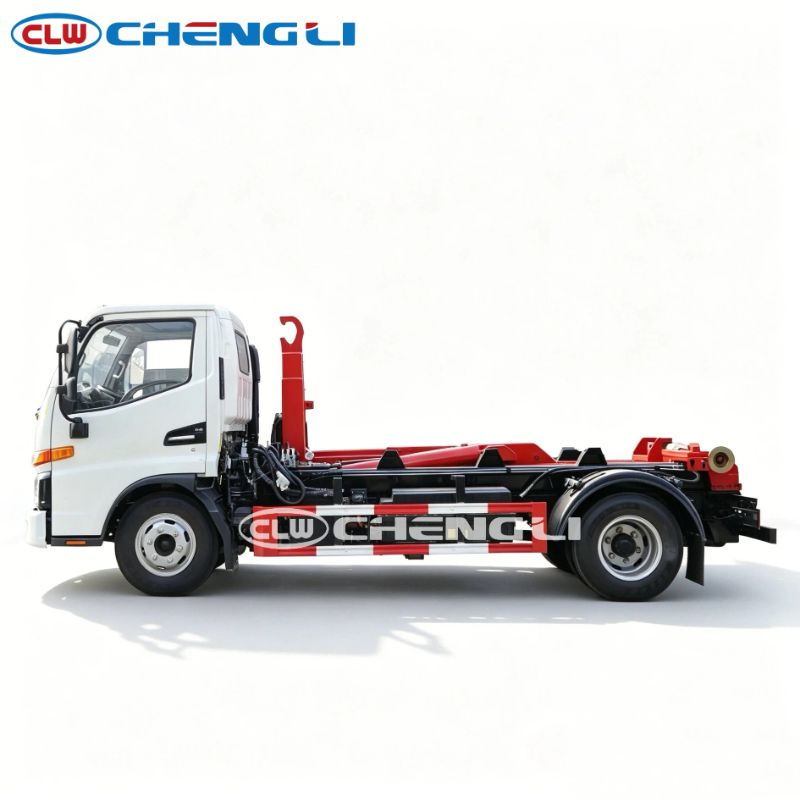

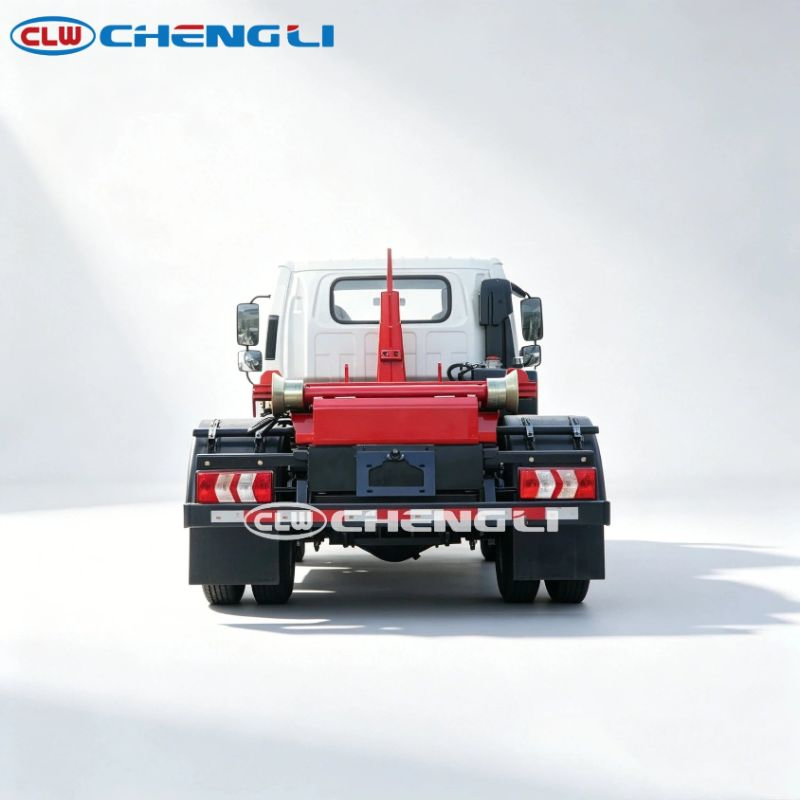

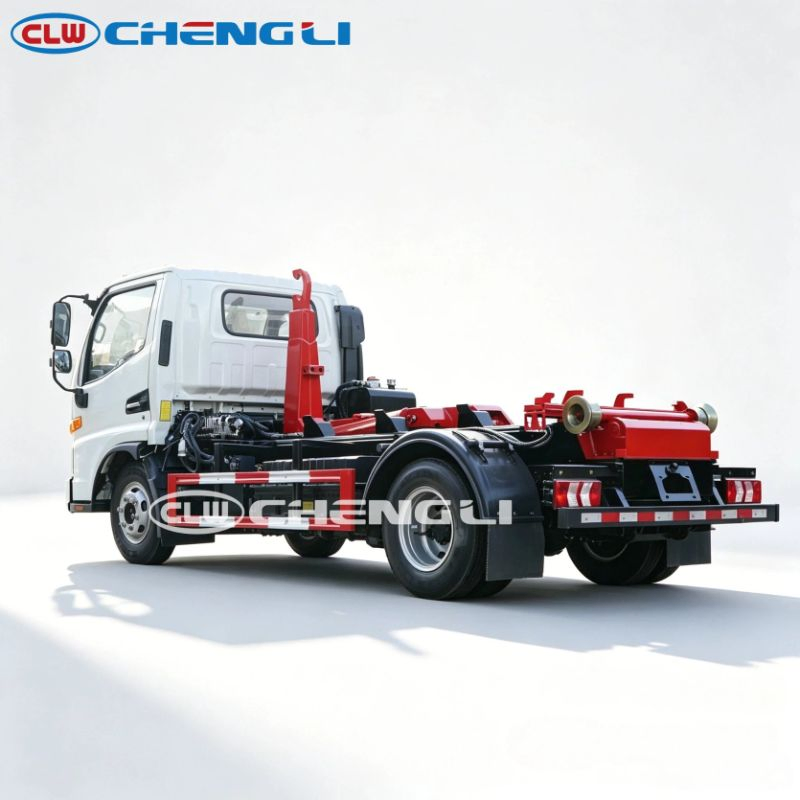

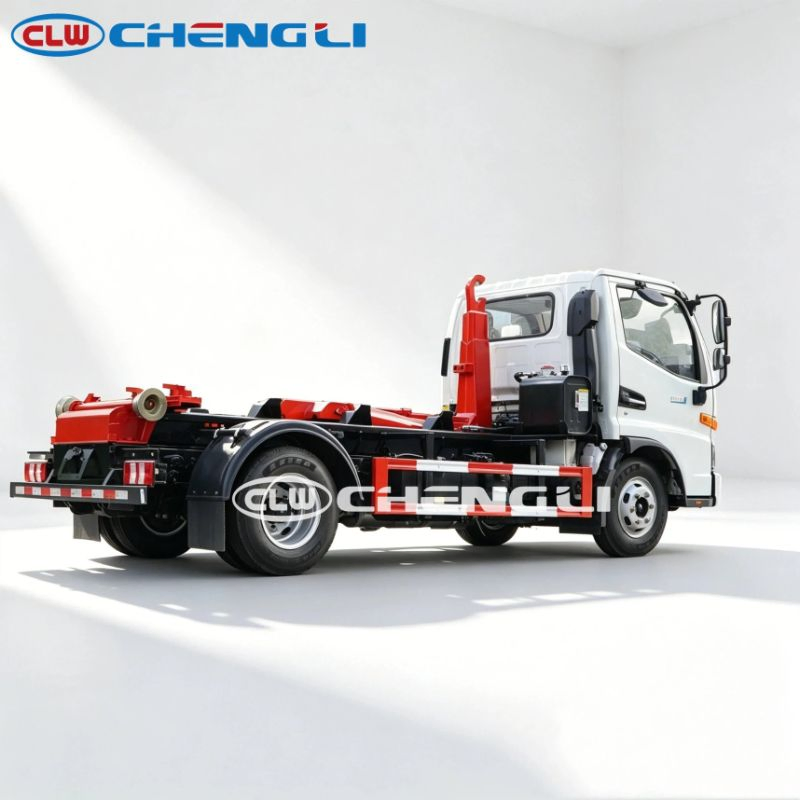

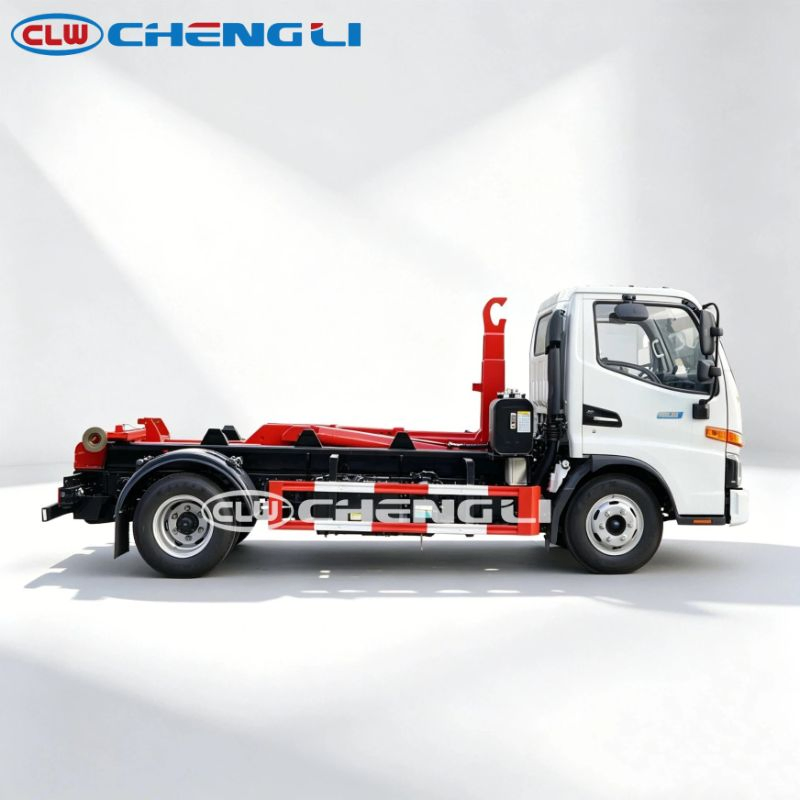

JAC Hook Lift Truck with 6.5 t payload
A factory-built hook lift truck for municipal waste, scrap and site haulage in West and East Africa. Detachable containers on a JAC chassis; about 6.5 t per legal run; hook height and container sizes confirmed before production.
Core capabilities
| Parameter | What it means on the job | Conditions | Factors that change the result |
|---|---|---|---|
| 11,400 kg GVW − 4,850 kg curb = 6,550 kg | About 6.5 t of collected waste per legal run — matching the factory rating | Factory curb weight as built; destination road rules apply | Body fill level, crew and equipment |
Specifications
| Manufacturer | CLW Group |
|---|---|
| Vehicle Model | CL5110 |
| Chassis Brand | JAC |
| Drive Layout | 4×2 |
| Fuel Type | Electric |
| Emission Standard | Zero-Emission Pure Electric |
| Transmission | Manual |
| Wheelbase | 3300 mm |
| Gross Vehicle Weight (kg) | 11400 |
| Curb Weight (kg) | 4850 |
| Rated Payload (kg) | 6455 |
| Overall Length (mm) | 5165 |
| Overall Width (mm) | 5600 |
| Overall Height (mm) | 2090 |
Parameters depend on the configuration; final values are fixed in the specification annexed to the contract.
This 4×2 JAC hook lift truck works with detachable containers: one chassis and a set of boxes cover waste, scrap and site haulage with a single vehicle.
The hook arm lifts, loads and locks the container from the cab in one cycle, and containers are dropped and swapped on route — the truck keeps collecting while full boxes wait for haulage.
As a factory build from CLW Group, the specification is fixed in writing before production; export documents are prepared for the destination market and the unit ships by RO-RO or flat-rack via Lagos, Tema, Mombasa and Dar es Salaam.
Frequently asked questions
What core structure and safety devices are on the swing arm equipment?
Reinforced heavy-duty subframe, 160mm hydraulic cylinder (optional 175mm). Equipped with hydraulic outrigger, anti-drop device, safety limit valve and balance valve to prevent tipping.
What standard cab configurations are included?
Power steering, factory heating & cooling air conditioner, central lock, electric windows, heated rearview mirror and multi-function steering wheel.
What is your after-sales warranty policy?
1-year whole vehicle warranty (excluding wearing parts). We provide lifelong online technical support, free first maintenance and cost-price spare parts supply, with over 300 global service stations.
What optional upgrades can I choose?
Optional thicker 175mm hydraulic cylinder, wear-resistant anti-corrosion bin coating, right-hand drive chassis modification and IPPC export wooden packaging.
Data source & status
Specifications on this page are documented from the CLW Group supplier listing and re-checked against the working requirement in the quotation.
