Refuse Trucks

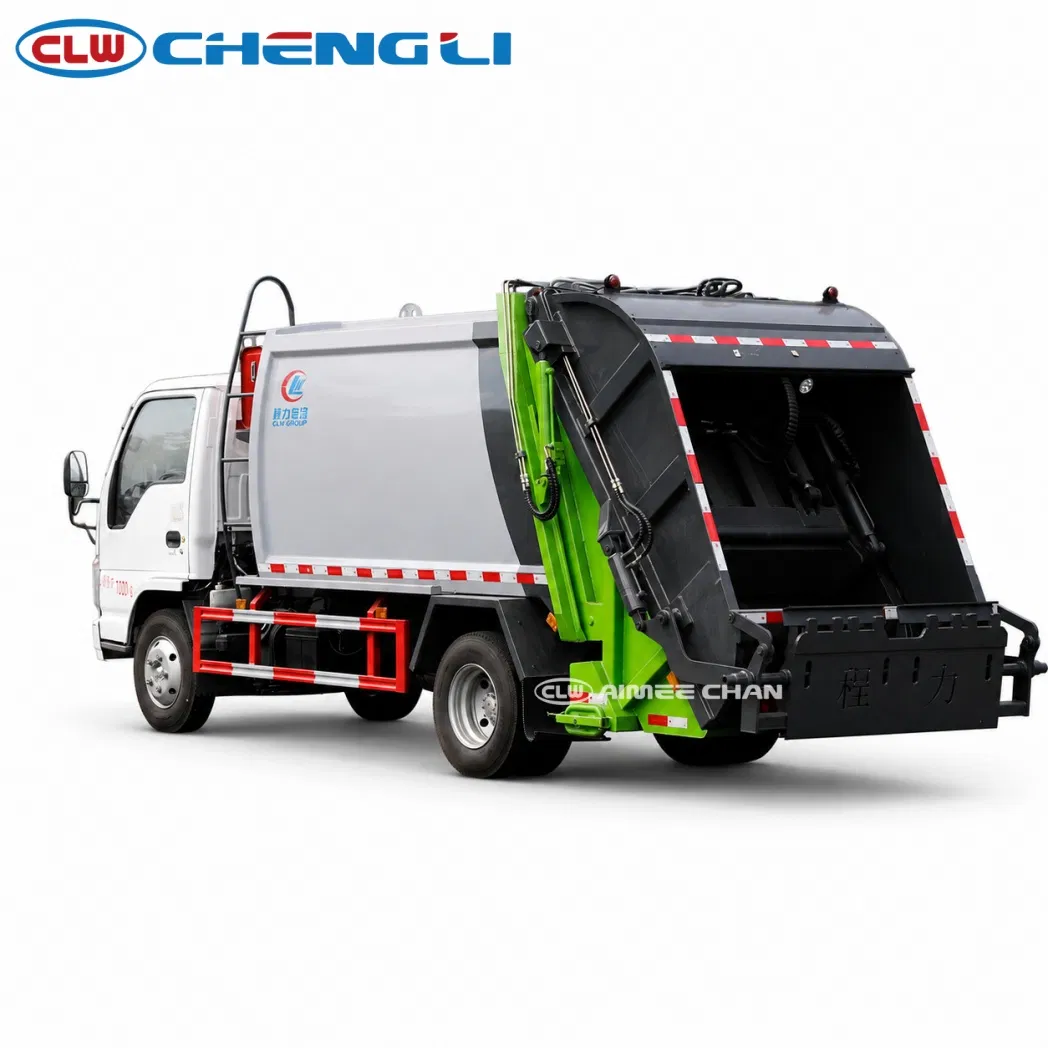

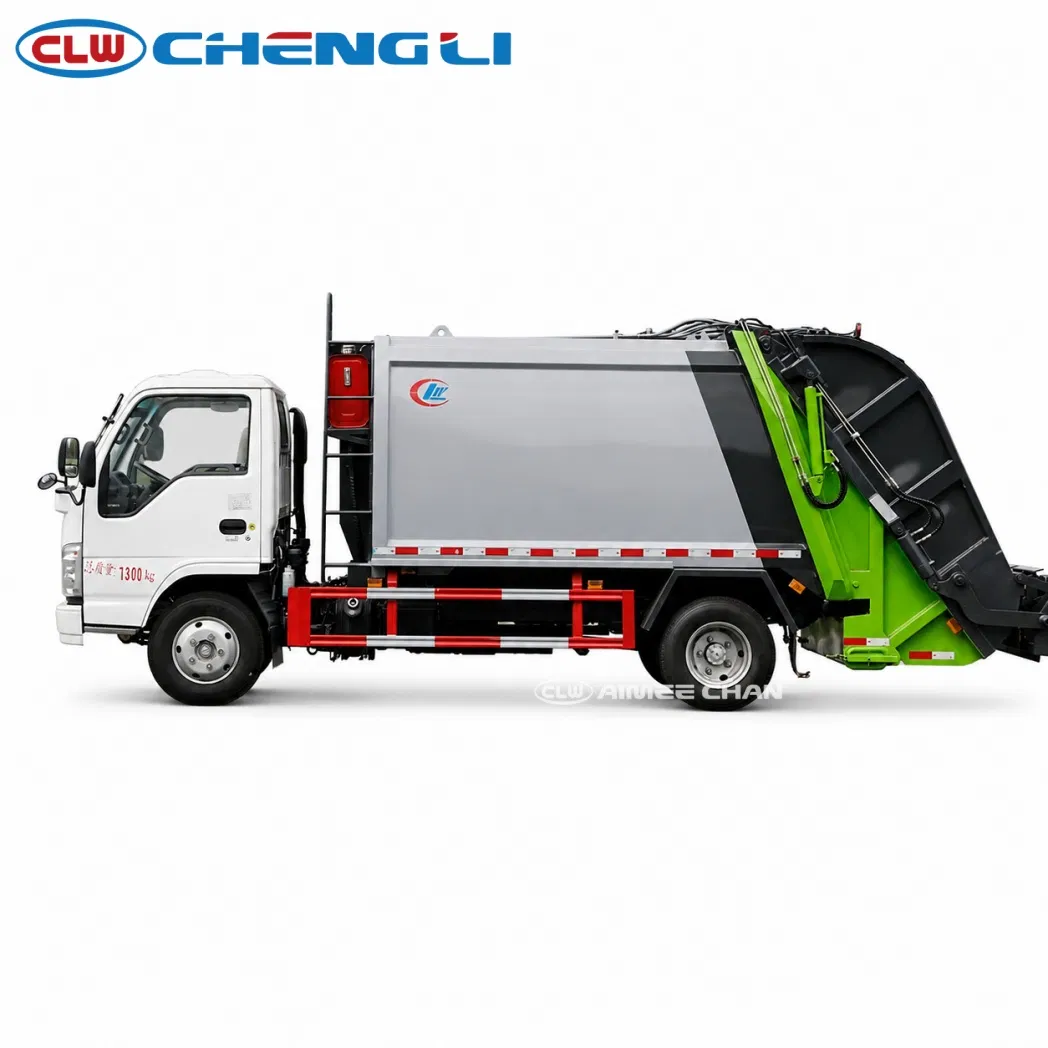

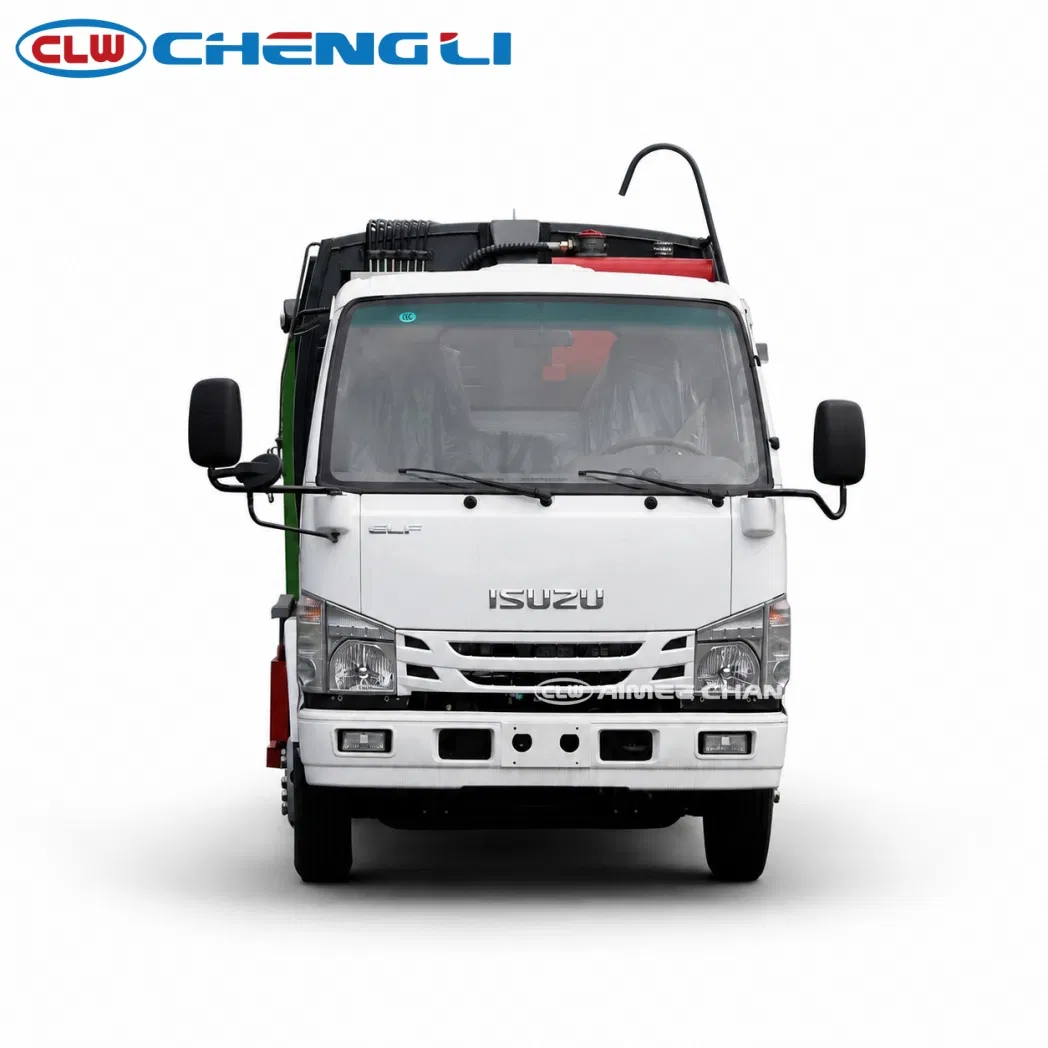

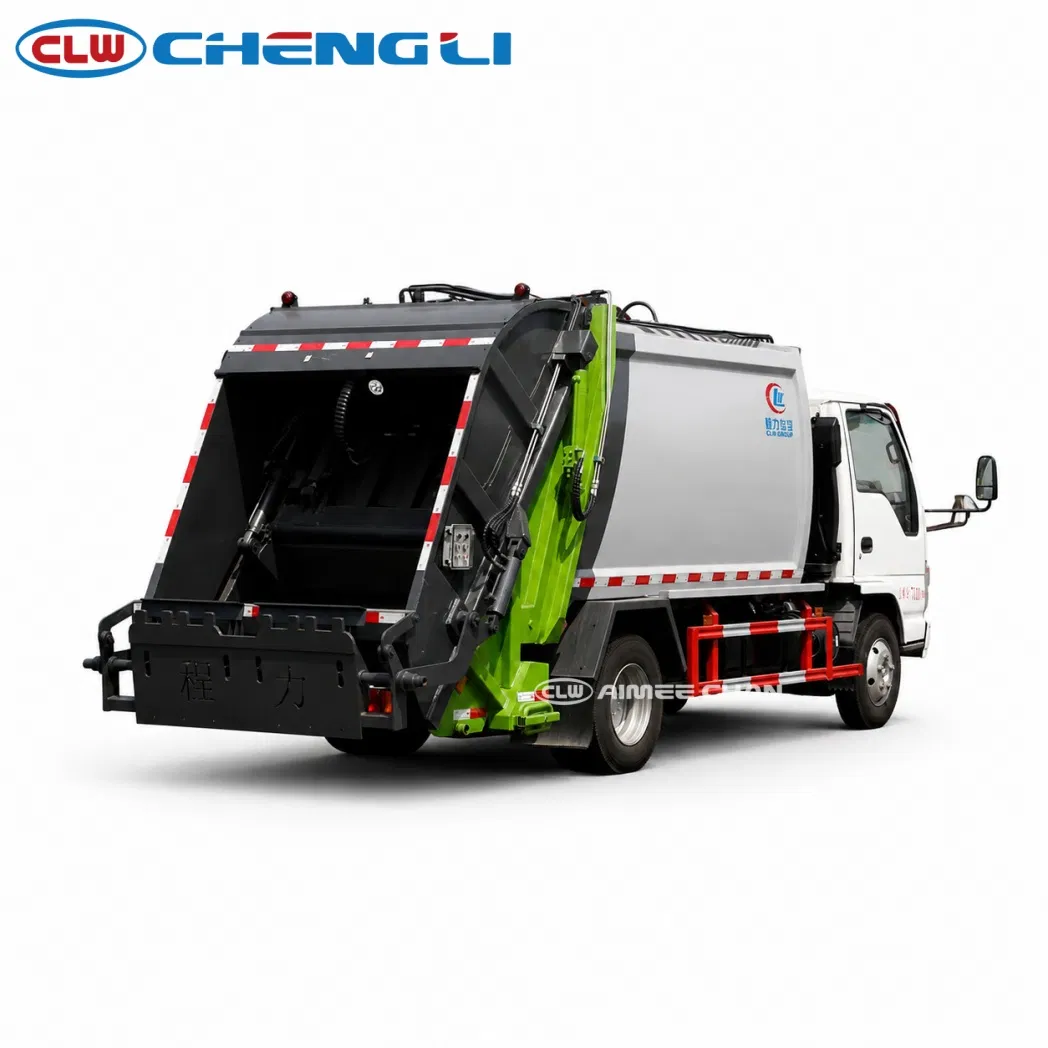

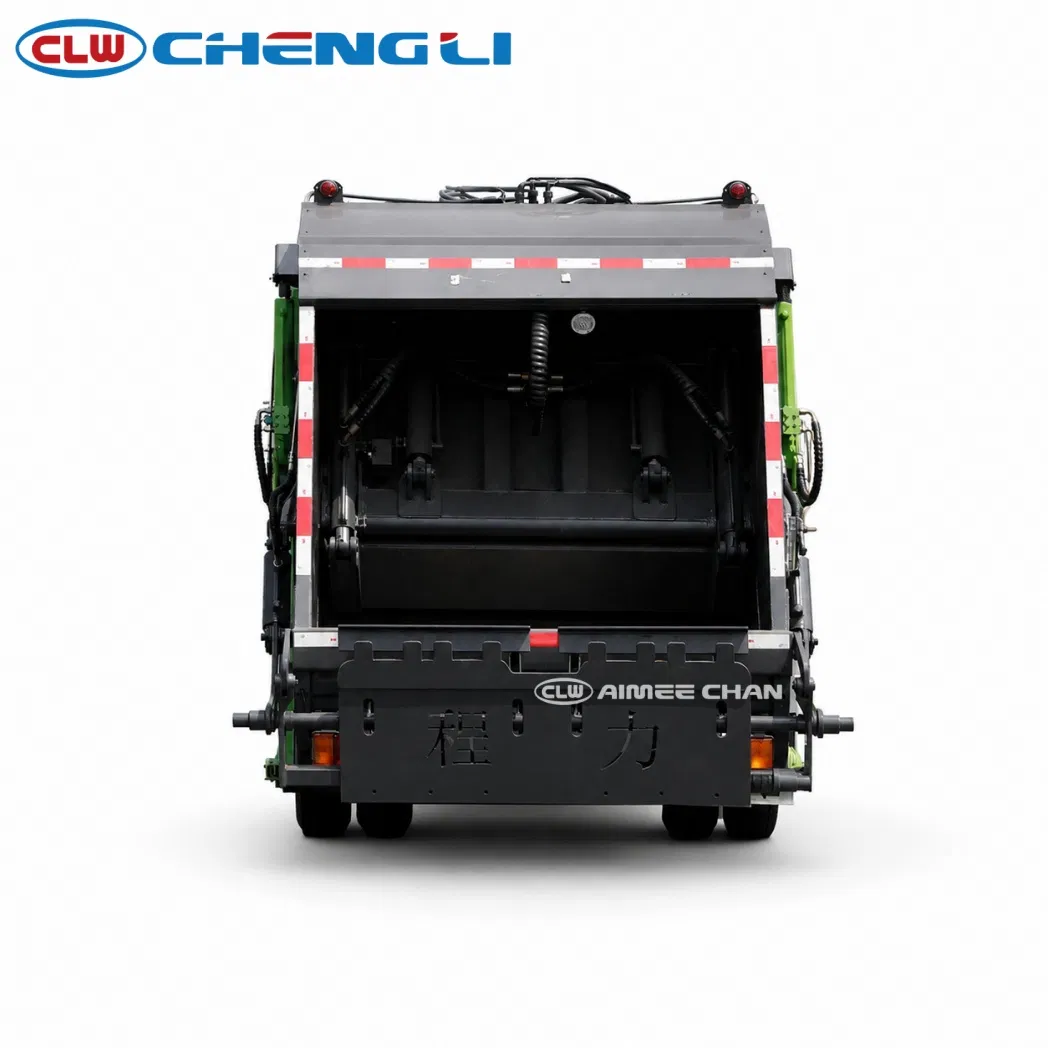

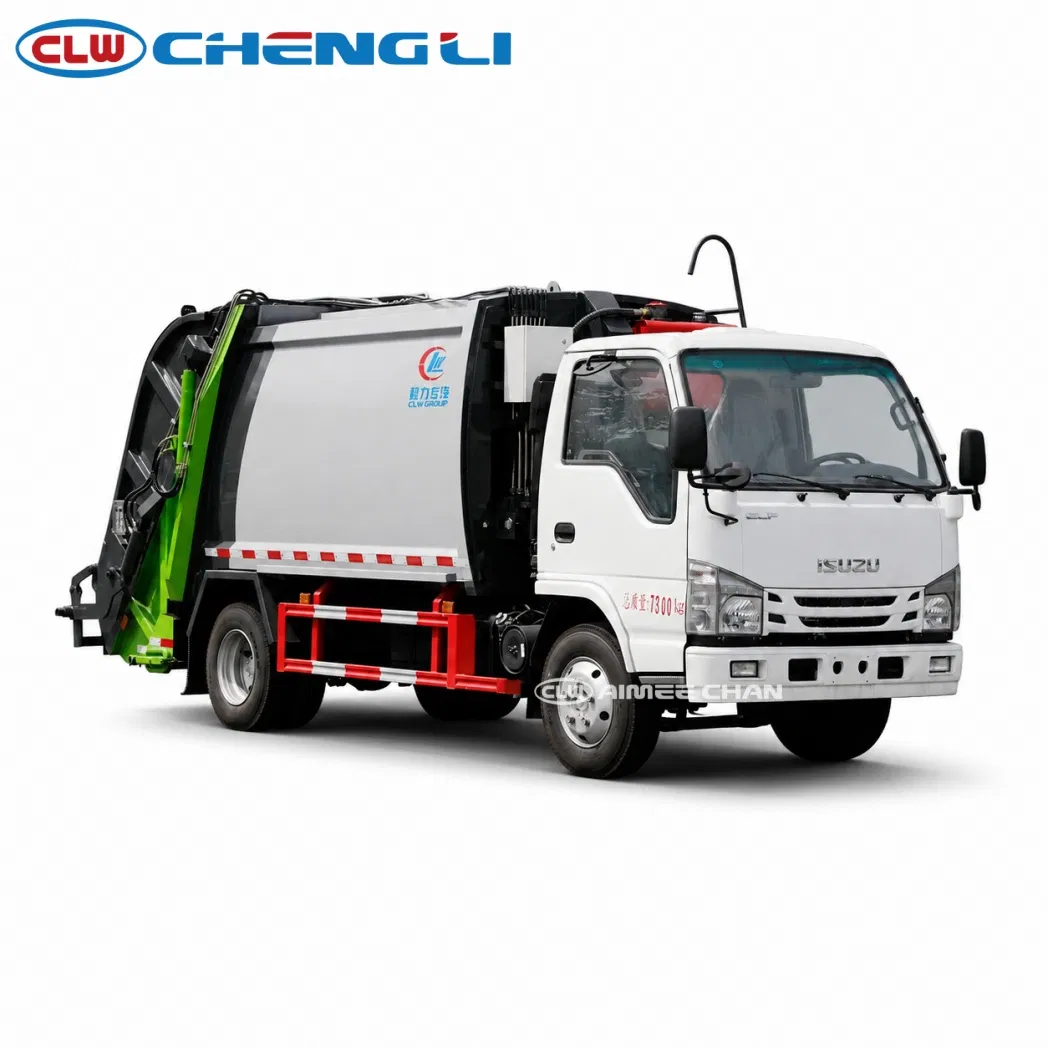

Isuzu 4×2 6 m³ Refuse Compactor Truck with 2.0 t payload
A factory-built rear-loading refuse compactor for municipal and commercial waste collection in West and East Africa. 6 m³ sealed body, about 2.0 t per legal run; bin system and body volume confirmed against the route before production.
Core capabilities
| Parameter | What it means on the job | Conditions | Factors that change the result |
|---|---|---|---|
| 7,300 kg GVW − 5,300 kg curb = 2,000 kg | About 2.0 t of collected waste per legal run — matching the factory rating | Factory curb weight as built; destination road rules apply | Body fill level, crew and equipment |
| 6 m³ compaction body | Holds roughly 2–3 t of compacted household waste per full load | Reference density 350–550 kg/m³ after compaction; legal payload applies | Waste composition, moisture and compaction achieved |
Specifications
| Manufacturer | CLW Group |
|---|---|
| Vehicle Model | 6cbm lsuzu ELF 100P Compactor Garbage Truck |
| Chassis Brand | Isuzu |
| Drive Layout | 4×2 |
| Fuel Type | Diesel |
| Emission Standard | Euro 2/3/4/5/6 |
| Transmission | Manual |
| Wheelbase | 3360 mm |
| Gross Vehicle Weight (kg) | 7300 |
| Curb Weight (kg) | 5300 |
| Rated Payload (kg) | 1870 |
| Overall Length (mm) | 6650 |
| Overall Width (mm) | 2050 |
| Overall Height (mm) | 2750 |
| Primary Capacity (m³) | 6 |
| Engine Brand | Lsuzu |
Parameters depend on the configuration; final values are fixed in the specification annexed to the contract.
This 4×2 Isuzu rear-loading compactor serves residential and commercial collection routes. The 6 m³ sealed body, holding about 2.0 t of waste per legal run.
Household waste is loaded through the rear hopper by the hydraulic filling mechanism, so each trip carries far more than an open truck. The bin lifter is matched to the container size and lifting height used on your routes.
As a factory build from CLW Group, the specification is fixed in writing before production; export documents are prepared for the destination market and the unit ships by RO-RO or flat-rack via Lagos, Tema, Mombasa and Dar es Salaam.
Frequently asked questions
What's your minimum quantity?
1 set.
What is your packing and shipping method?
Naked packing, we transport our trucks by bulk cargo carrier, ro-ro or 40/45 HQ, or land transportation.
Why do you trust and choose us?
---Complete production line, from trailer Design to Delivery. --- ISO 9001: 2008 and CCC quality certificate. ---Use 100% famous brand spare parts you want. --- Accept customization requirements. ---We are trusted by clients from Africa, Australia, South America, Indonesia, and so on. ---We accept flexible payment terms, T/T, L/C, D/P ect.
Can I customize the painting and the logo?
Yes, we offer customized logos for any type.
Data source & status
Specifications on this page are documented from the CLW Group supplier listing and re-checked against the working requirement in the quotation.
